Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | JRLite OEM/ODM |
| Certification: | UL / TUV / CE / ROHS / REACH |
| Model Number: | LEDLINE UNI 0408 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1PC |
| Price: | Negotiable |
| Packaging Details: | On ESD Bag,on shipping box, without LOGO. Standard 5Mtr/reel, different lengths can be offered if needed. |
| Delivery Time: | 3-4 weeks after payment |
| Payment Terms: | D/P T/T Paypal |
| Supply Ability: | IP20 LED strip 50000m per day |
|
Detail Information |
|||
| Model: | LEDLINE UNI 0408 | Beam Angle: | 120° |
|---|---|---|---|
| LED PIN Temperature: | Max.65℃ | Storage Temperature: | -25℃ ～ +60℃ |
| CRI: | Ra95 | LED Color: | White |
| Power(W/M): | 6W/M | Warranty: | 3 Years |
| High Light: | Silicone Coated Waterproof Neon Lights,neon tape light IP44,Waterproof Neon Lights 5300K |
||
Product Description

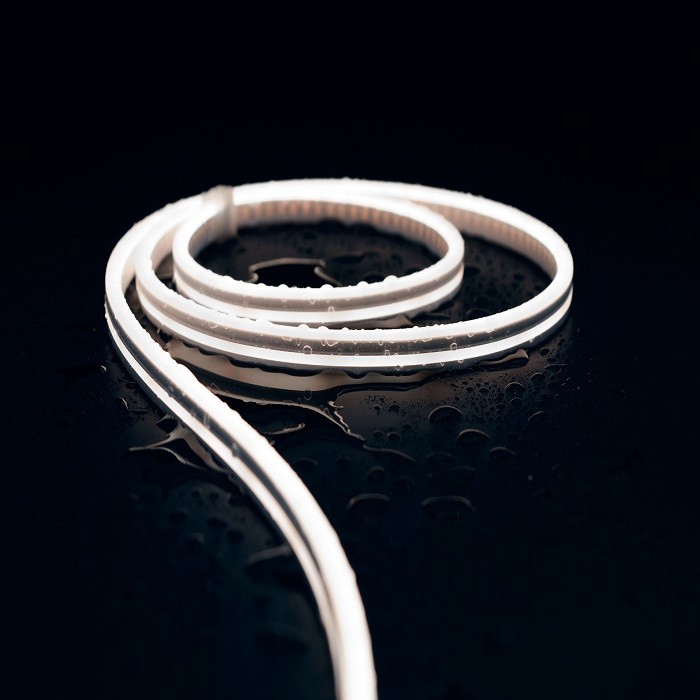

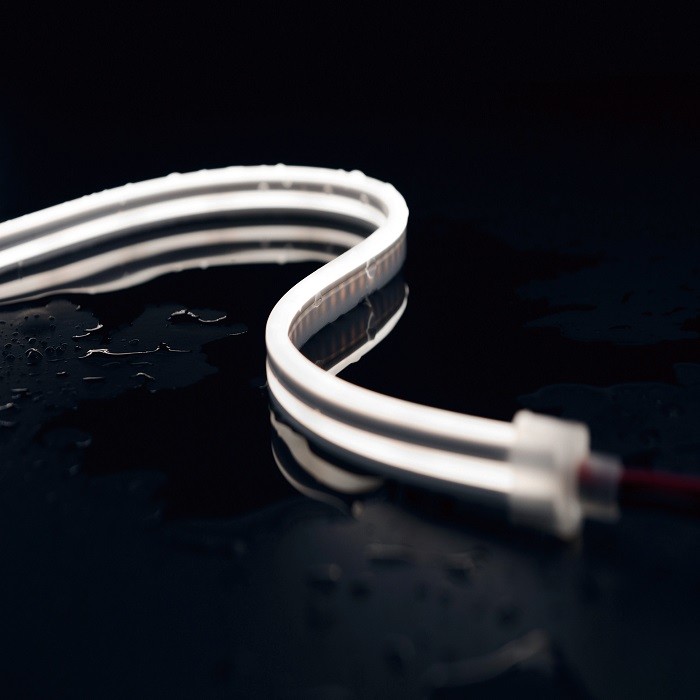

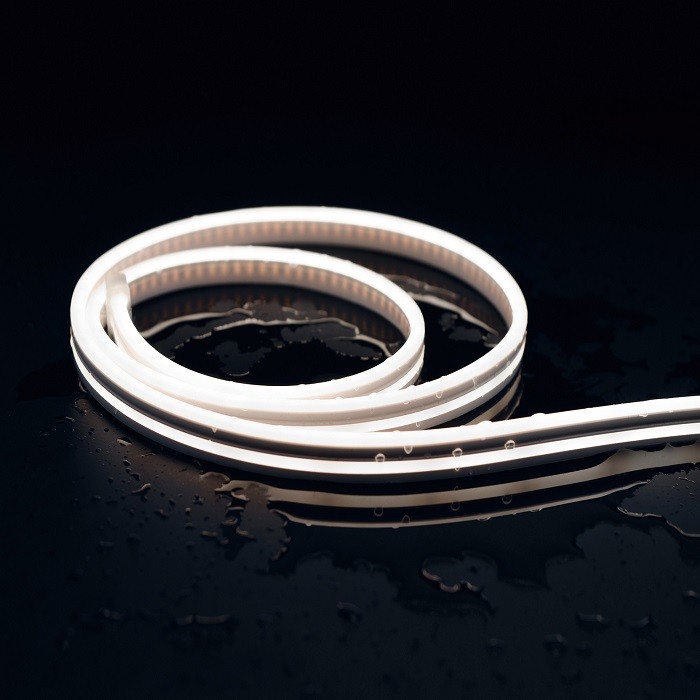

Silicone Coated Waterproof Neon Lights IP44 /IP67 SMD 2835 DC24V Indoors/outdoors
Quick Detail:
· LEDLINE UNI 0408, DC24V.
· Size 4mm x 8mm / 0.16" x 0.31" (W x H)
· UV-resistance(no yellowish)
· Horizontal bending
· 120º beam projection
· Maximum run length 5M
· Max production Length: 10m/reel
· IP44&IP67 protected are optional
· Cable entry directions: Front/Side/Bottom
· CE, RoHS, Reach, UL compliant
· Life Span >36000H
· 3 Year Warranty
Specifications:
| Tech Date | |
| Model | LEDLINE UNI 0408 |
| Beam Angle | 120° |
| LED PIN Temperature | Max.65℃ |
| Storage Temperature | -25℃ ～ +60℃ |
| Life span | >36000hrs |
| Certification | CE, RoHS, Reach, UL |
| IP Grade | IP44/IP67 |
| Warranty | 3 Years |
| Max. Run Length | 5M |
| CRI | Ra95 |
| Voltage | DC24V(23.5Vmin, 24.5Vmax) |
| Color Temperature | 2700K-5300K |
| Chromaticity Coordinates (x and y) | x=0.463 / y=0.42 |
| Power(W/M) | 6W/M |
| LM/M | 240LM/M-253LM/M |
| Unit Cut | 25MM |
Download datasheet: LEDLINE UNI 0408 Datasheet.pdf
Notices:
- Max. run length refers to single side feed in serial connection.
- The given data are typical values due to the tolerances of the production process and
the electrical components, values for light output and electrical power can vary up to 10%.
- The given color temperature is the temperature of finished product.
Applications:
FAQ:
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: 2-4 weeks after payment.
Q3. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production.
Q4. Are you a manufacturer?
A: Yes, we have our own factory and professional engineers to meet your any requirements. Welcome you to visit our factory.
Q5. What are your payment terms?
A: 100% Payment before production or 30% deposit+ 70% before shippment(The latter requires a single payment of more than $10,000)
