Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | JRLite OEM/ODM |
| Certification: | UL / TUV / CE / ROHS / REACH |
| Model Number: | LEDLINE EVIS WHT -40 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | On ESD Bag,on shipping box, without LOGO. Standard 5Mtr/reel, different lengths can be offered if needed. |
| Delivery Time: | 3-4 weeks after payment |
| Payment Terms: | D/P T/T Paypal |
| Supply Ability: | IP20 LED strip 50000m per day |
|
Detail Information |
|||
| Model: | LEDLINE EVIS WHT -40 | Warranty: | 5 Years |
|---|---|---|---|
| LED Color: | 4000K | Neon Dimension: | 16mm*15mm |
| Unit Cut: | 50mm | IP Grade: | IP67 |
| Life Span: | >54000H | LEDs/m: | 120LEDs/m |
| Highlight: | Flexible Neon Strip Lumileds 2835,24V Neon Light 16mm X 15mm,Flexible Neon Strip JRLite OEM |
||
Product Description

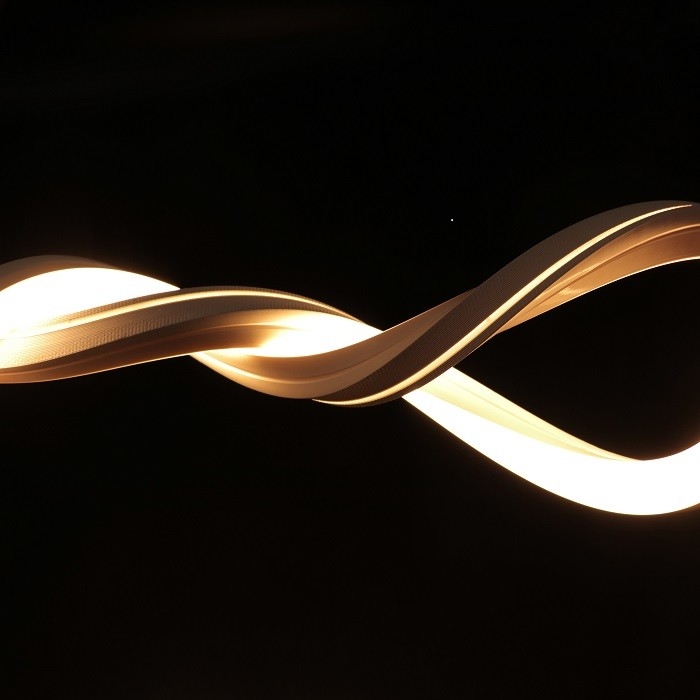

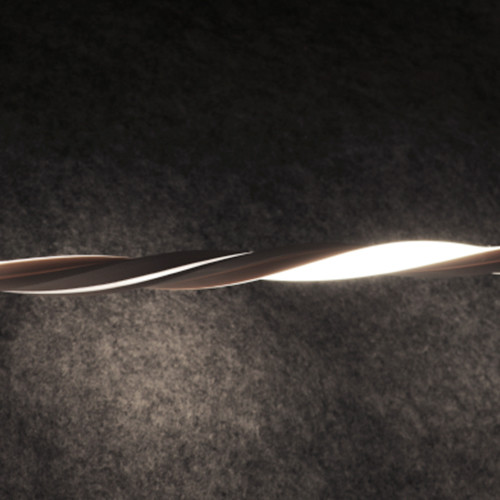

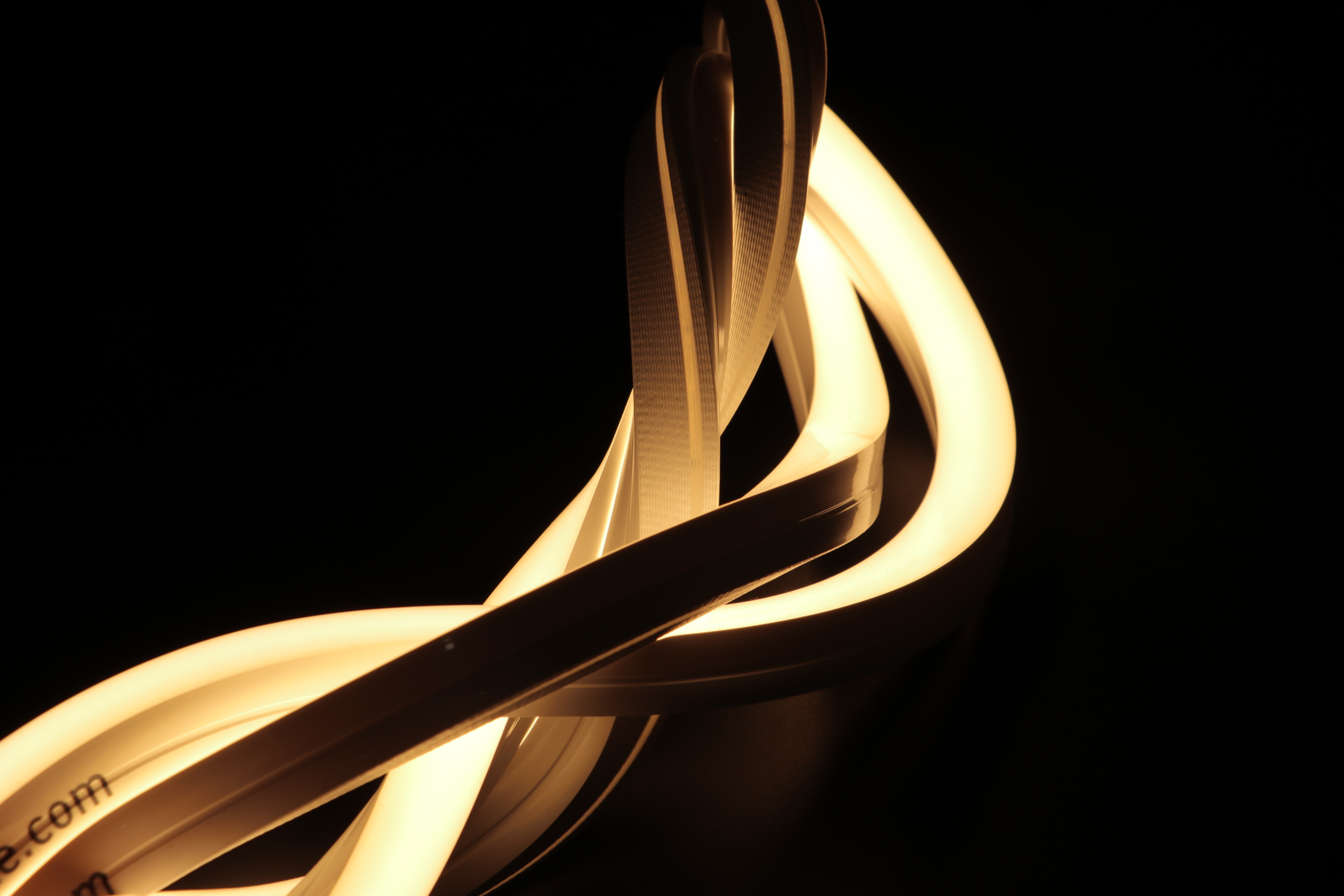

IP67 DC24V 4000K Flexible Neon Strip Lumileds 2835 Led Chip 16mm*15mm
Description:
- IP67 waterproof free for your indoor and outdoor application
- Dot free lighting effect can make the excellent lighting performance
Quick Detail:
· Voltage: DC24V
· Neon Size: 16mm*15mm
· Bending Direction: 3D Twisted Bending
· Cutting Interval: 50mm
· Max Wattage: 10W/m
· CRI: Ra93
· CCT: 4000K
· Max Run Lenghth: 5m
· IP Rating: IP67
· Endcap Option: Injected endcap, Silicone endcap
· CE, RoHS, TUV, UL compliant
· 5 Year Warranty
Specifications:
| Model | LEDLINE EVIS WHT -40 |
| SMD Type | 2835 |
| LEDs/m | 120LEDs/m |
| LED Power | 10w/m |
| LED Color | 4000K |
| Input Voltage | DC24V |
| Ra | >93 |
| Neon Dimension | 16mm*15mm |
| Unit cut | 50mm |
| IP Grade | IP67 |
| Storage Temperature | -25℃ /-13℉min, 60℃ /140℉max |
| Life Span | >54000H |
| Certification | CE, RoHS, TUV,REACH, UL |
| Warranty | 5 years |
Down datasheet: EVIS.pdf
Notices:
1. Please light it up for a quick check before installation.
2. Bending diameter of LEDLINE EVIS WHT is 200mm,do not bend too sharp. If bend it wrongly, PCB inside will be damaged and the lighting fixture will not turn on.
3. During installation, please make sure there are at least two workers to cooperate together and strictly follow the instruction manuals.
4. Warranty: All LED light are warranted to be free from defects in product itself for 5 years from the date of purchase. This warranty does not cover failures due to abuse, misuse, improper handling, act of nature, negligence, normal wear, accidental damage, modifications or repairs made by the purchaser or incorrect voltage conditions.
FAQ:
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: 2-4 weeks after payment.
Q3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available.
