Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | JRLite OEM/ODM |
| Certification: | UL/TUV/CE/ROHS/REACH |
| Model Number: | LEDLINE ASTON 1220 MEDIA |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1PC |
| Price: | Negotiable |
| Packaging Details: | On ESD Bag,on shipping box, without LOGO. Standard 5Mtr/reel, different lengths can be offered if needed. |
| Delivery Time: | 2-4 weeks after payment |
| Payment Terms: | D/P T/T Paypal |
| Supply Ability: | IP20 LED strip 50000m per day |
|
Detail Information |
|||
| Material: | Silicone Neon Flex | Gray Scale: | 65536 |
|---|---|---|---|
| Neon Size: | 12mm*20mm | Bending Direction: | Side Bending (horizontal Bending) |
| IP Rating: | IP67 | Voltage: | DC24V |
| Control Mode: | DMX512 | LED PIN Temperature: | Max.65℃ |
| High Light: | Horizontal Bending Silicone Neon LED Strip,UV Resistant Silicone Neon LED Strip,125mm Silicone Neon Strip |
||
Product Description

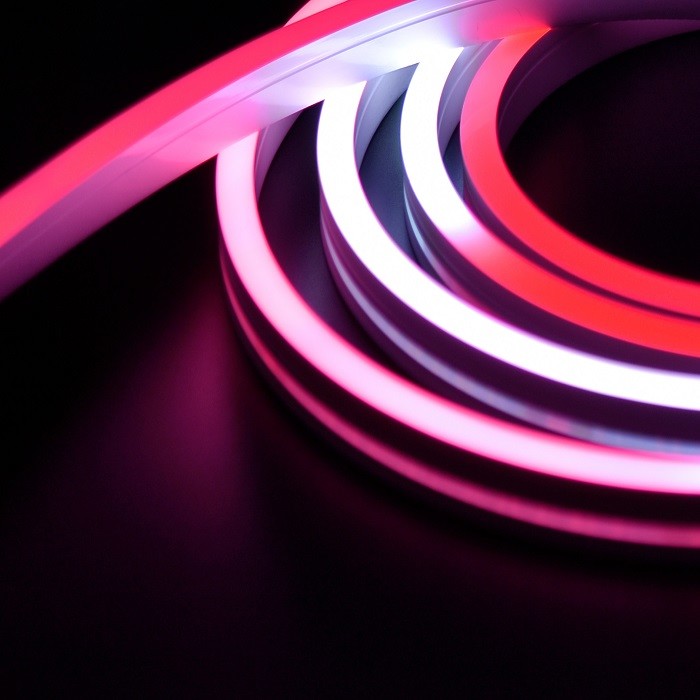

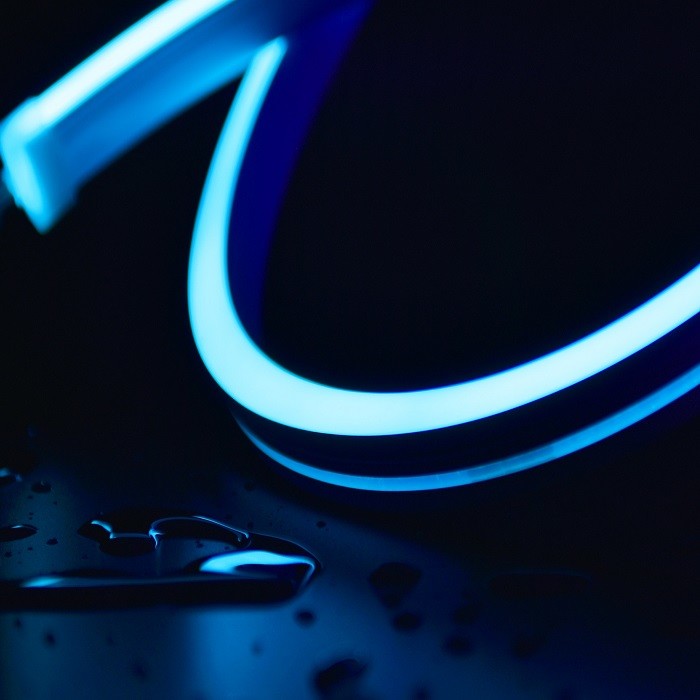

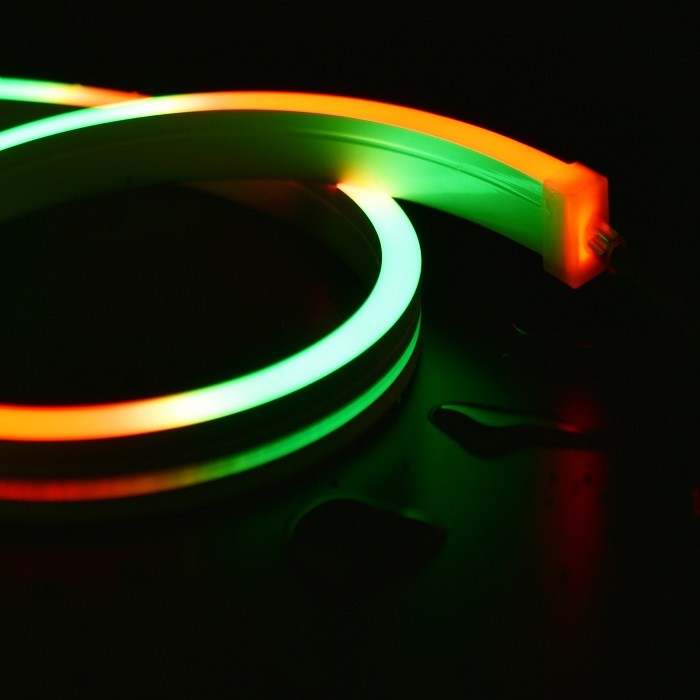

1220 Horizontal Bending MEDIA Silicone LED Neon DC24V IP67 UV Resistant
Quick Detail:
· Voltage: DC24V
· Neon Size: 12mm*20mm
· Bending Direction: Side bending (horizontal bending)
· Unit Cut: 125mm
· Power Wattage: 3.3W/m;/10W/m
· Max Run Length: 5m
· IP Rating: IP67
· Endcap Option: Injection, Silicone, Mechanical
· CE, RoHS, TUV, UL compliant
· 5 Year Warranty
Specifications:
| Model | LEDLINE ASTON 1220 MEDIA |
|
LED PIN Temperature
|
Max. 65℃ /149° F |
| LED Power | 3.3W/m;10W/m |
| Input Voltage | DC24V(23.5min,24.5max) |
| Neon Dimension | 12mm*20mm |
| Unit cut | 125mm |
| IP Grade | IP67 |
| Storage Temperature | -25℃ /-13℉min, 60℃ /140℉max |
| Life Span | >30000H |
| Certification | CE, RoHS, TUV,REACH, UL |
| Warranty | 3 years |
| Leds/m | 80 |
Download datasheet: LEDLINE ASTON 1220 MEDIA Datasheet.pdf
Notices:
Applications:
1. Facade lighting, contour lighting and landscape lighting.
2. Solutions for retail shops.
3. Decoration lighting for game machines.
4. Ideal for architectural lighting, coves, object integration.
FAQ:
Q1. For long-term cooperation customers, the price will be favorable?
A: Of course it will, Long-term clients are like family to us.
Q2. What are the advantage of your products?
A: We dedicate on LED Strips with more than10 years experience and have nearly 10 years cooerpation with Philips. Our factory has a variety of advanced equipment.
Q3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available.
