Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | JRLite OEM/ODM |
| Certification: | UL/TUV/CE/ROHS/REACH |
| Model Number: | LEDLINE EVIS WHT |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1PC |
| Price: | Negotiable |
| Packaging Details: | On ESD Bag,on shipping box, without LOGO. Standard 5Mtr/reel, different lengths can be offered if needed. |
| Delivery Time: | 3-4 weeks after payment |
| Payment Terms: | D/P, T/T, Paypal |
| Supply Ability: | IP20 LED strip 50000m per day |
|
Detail Information |
|||
| Material: | Dow Corning Silicone | Voltage: | DC24V |
|---|---|---|---|
| Neon Size: | 16mm*15mm | LED Color: | 2700K/3000K/3500K/4000K/5000K |
| Unit Cut: | 50mm | IP Grade: | IP67 |
| Efficiency(LM/W): | 692LM/M(2700K) | Warranty: | 5 Years |
Product Description

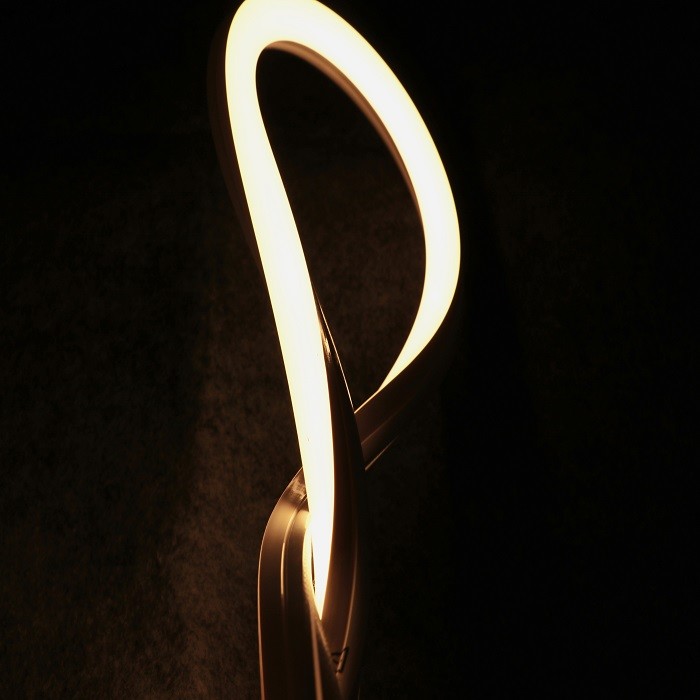

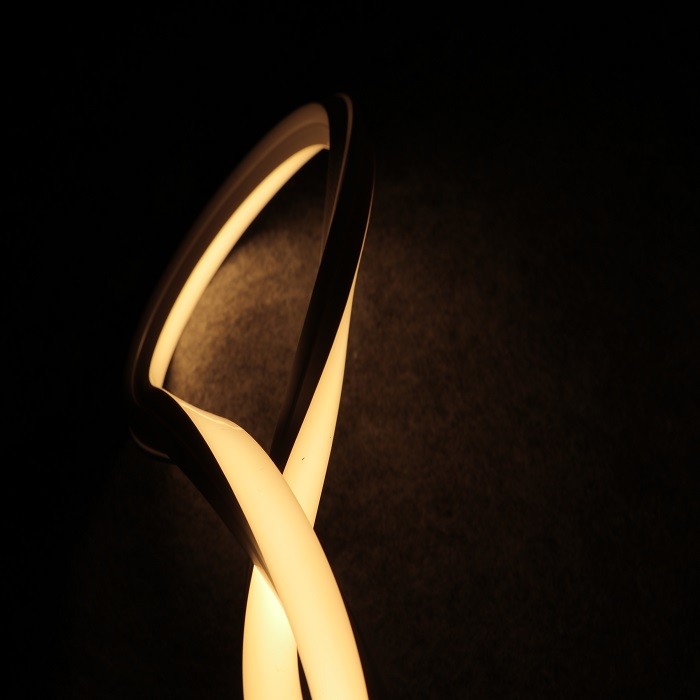

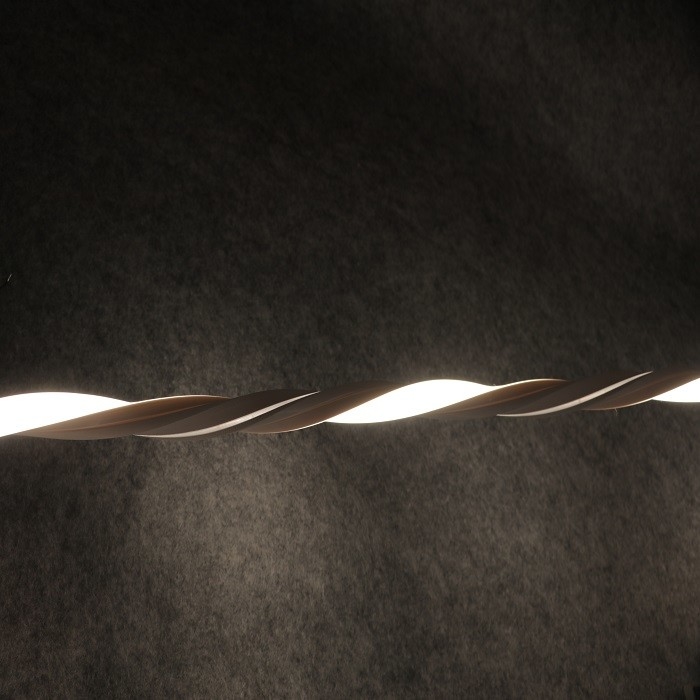

3D IP67 DC24V protected UV resistant Silicone Flexible Neon Strip CRI90
Description:
Specifications:
| Model | LEDLINE EVIS WHT |
| SMD Type | Lumileds 2835/Sanan 2835 |
| LEDs/m | 120LEDs/m |
| LED Power | 10W/M |
| LED Color | 2700K/3000K/3500K/4000K/5000K |
| Input Voltage | DC24V |
| Ra | >93 |
| Neon Dimension | 16mm*15mm |
| Unit cut | 50mm |
| IP Grade | IP67 |
| Storage Temperature | -25℃ /-13℉min, 60℃ /140℉max |
| Life Span | >54000H |
|
Package length
|
≤ 30m
|
|
Beam Angle
|
120° |
| Bending | 3D Bending (Vertical bending & Horizontal) |
Download Datasheet: EVIS.pdf
Notices:
Applications:
FAQ:
Q1. Why use Silicone material?
A:
1.UV resistant, will not yellow in time.
2.Highly flexible, stable and
durable; soft to bend, fast recovery after bending.
3.For the installation environment, it can endure in -25℃ to 60℃ temperature.
4.Non sticky, easy-to-clean, no smell and no chemical reaction with detergent.
5.Premium look and feel.
Q2. Is it possible to visit the factory?
A: Of course, we welcome customers to experience our production equipment and standard production environment
Q3.Where is your factory located?
A: Our factory is located in Baoan District,Shenzhen, Guangdong Province, China.
Q4. What are your main products?
A: Our company dedicated in LED Strips for more than 10 years. Our main products are led strip, cob(CHIP ON BOARD) strip, neon flex and rigid bar.
Q5. What are your payment terms?
A:100% Payment before production
