Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | JRLite OEM/ODM |
| Certification: | UL/TUV/CE/ROHS/REACH |
| Model Number: | LEDLINE ASTON 1220 HE-27 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1PC |
| Price: | Negotiable |
| Packaging Details: | On ESD Bag,on shipping box, without LOGO. Standard 5Mtr/reel, different lengths can be offered if needed. |
| Delivery Time: | 3-4 weeks after payment |
| Payment Terms: | D/P, T/T，Paypal |
| Supply Ability: | IP20 LED strip 50000m per day |
|
Detail Information |
|||
| Material: | Silicone Neon Flex | ERP Classification: | G |
|---|---|---|---|
| CCT: | 2700K | LED Color: | Warm White |
| IP Grade: | IP67 | Power(W/M): | 9.6W/M |
| Beam Angle: | 120° | LED Type: | Lumileds 2835 |
| High Light: | ERP Silicone Neon Strip,Warm White LED Strip IP67,Silicone Neon Strip 24Vdc |
||
Product Description

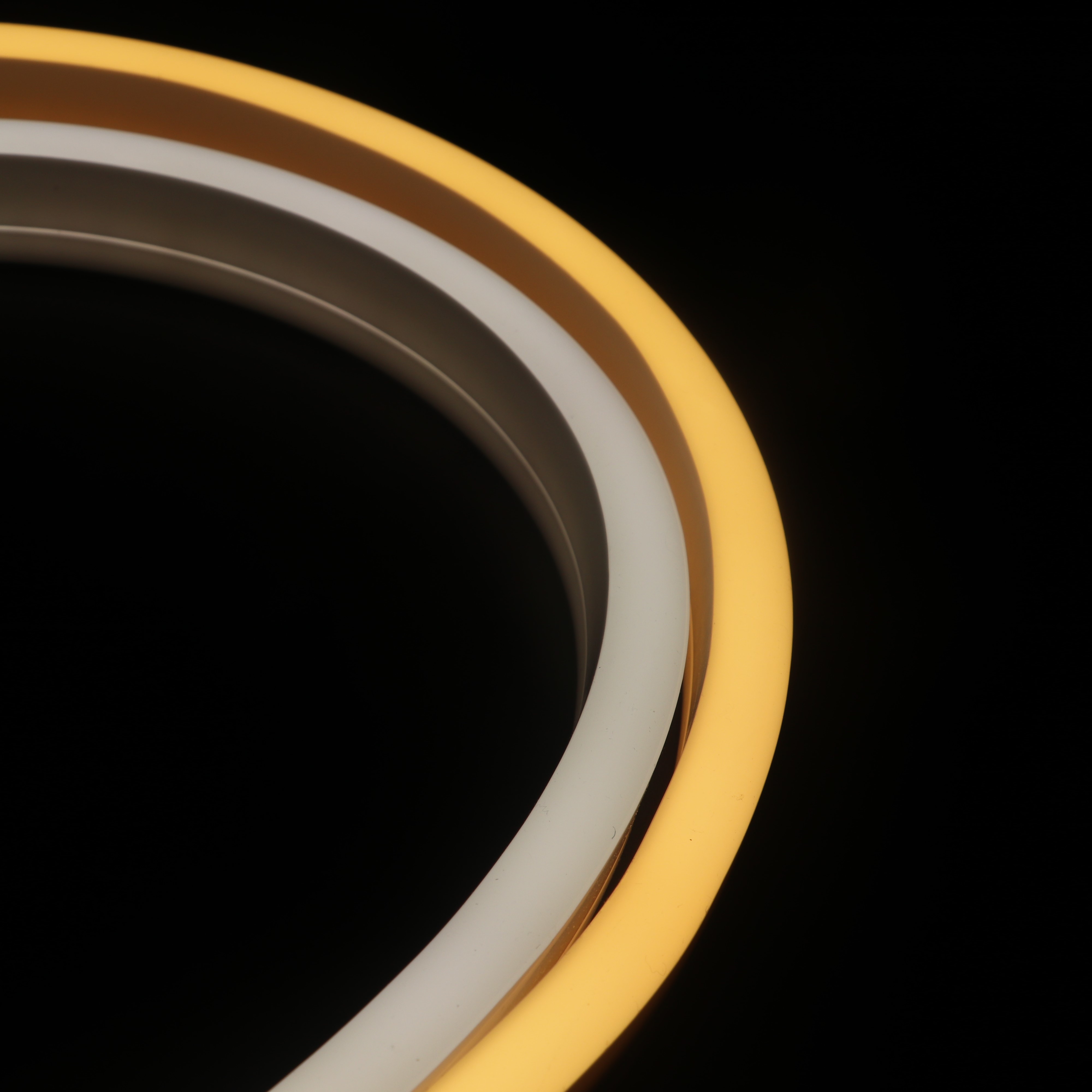

ERP Silicone Neon Led Strip 24Vdc 160leds Warm White 88lm/W IP67 Rating CE
Description:
- Horizontal bending 12mm*20mm silicone neon led strip in 2700K can reach 88lm/W
- IP67 protected, UV resistant, chemical resistant. Silicone endcap are optional as accessory, which is very easy to cut & reconnect on site.
- 3-Step MacAdam bin and dot free lighting guarantee the most extraordinary performance over the rated lifetime.
Quick Detail:
Specifications:
| Model | LEDLINE ASTON 1220 HE-27 |
| LED Type | Lumileds 2835 |
| Beam Angle | 120° |
| LED PIN Temperature | Max.65℃ |
| Storage Temperature | -25℃ ～ +60℃ |
| Life span | >54000hrs |
| Certification | CE, RoHS, Reach, UL |
| IP Grade | IP67 |
| Warranty | 5 Years |
| Max. Run Length | 5M |
| CRI | Ra80 |
| LED Color | Warm white |
| Voltage | DC24V(23.5Vmin, 24.5Vmax) |
| Working Energy Consumption(kWh/1000h) 0.5m | 4.8 |
| Lumen Maintenance Factor | 0.96 |
| Color Temperature | 2700K |
| Chromaticity Coordinates (x and y) | x=0.463 / y=0.42 |
| Power(W/M) | 9.6W/M |
| Power(W/0.5M) | 4.8W/M |
| LM/0.5M | 422lm |
| Efficiency(LM/W) | 88lm/w |
| ERP classification | G |
Notices:
1. Please Light it up for a quick check before installation.
2. Bending diameter of LEDLINE ASTON 1220 WHT is 240mm, do not bend to upward or downward direction, or bend too sharp or twist. If bend it wrongly, PCB inside will be damaged and the lighting fixture will not turn on.
3. During installation, please make sure there are at least two workers to cooperate together and strictly follow the instruction manuals.
4. Warranty: All LED light are warranted to be free from defects in Product itself for 5 years from the date of purchase. This warranty does not cover failures due to abuse, misuse, improper handling, act of nature, negligence, normal wear, accidental damage, modifications or repairs made by the purchaser or incorrect voltage conditions.
Applications:
LEDLINE ASTON 1220 HE-27 is suitable for both indoor and outdoor applications such as facade lighting, contour lighting, landscape lighting, retail shops, gallery, show-booth and exhibition room. Ideal for architectural lighting, coves, object integration.Desired light effect in bar counter, restaurant, hotel and task lighting applications.
FAQ
Commercial CE RoHS Reach UL Certificate Outdoor IP67 Waterproof
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: 2-4 weeks after payment.
Q3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: Ship by DHL, UPS, FedEx or TNT. It takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for led light?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 3-5 years warranty to our products.
Q8: How to deal with the faulty?
A: All LED strip are warranted to be free from defects in product itself for 3 years from the date of purchase.
This warranty does not cover failures due to abuse, misuse, improper handling, act of nature, negligence, normal wear, accidental damage, modifications or repairs made by the purchaser or incorrect voltage conditions.
