Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | JRLite OEM/ODM |
| Certification: | UL / TUV / CE / ROHS / REACH |
| Model Number: | COVEFLEX POP WHT 6500K |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1PC |
| Price: | Negotiable |
| Packaging Details: | On ESD Bag,on shipping box, without LOGO. Standard 5Mtr/reel, different lengths can be offered if needed. |
| Delivery Time: | 3-4 weeks after payment |
| Payment Terms: | D/P T/T Paypal |
| Supply Ability: | IP20 LED strip 50000m per day |
|
Detail Information |
|||
| Model: | COVEFLEX POP WHT 6500K | LED Color: | White |
|---|---|---|---|
| LED PIN Temperature: | Max.65℃ | CRI: | Ra90 |
| Warranty: | 5 Years | Max. Run Length: | 5M |
| Color Temperature: | 6500K | Voltage: | DC24V(23.5Vmin, 24.5Vmax) |
| IP Grade: | IP20 | LM/M: | 1457lm @14.4W/M |
| High Light: | 10mm SMD LED Strip light,led ribbon lights SMD2835,24V 12V SMD LED Strip light |
||
Product Description

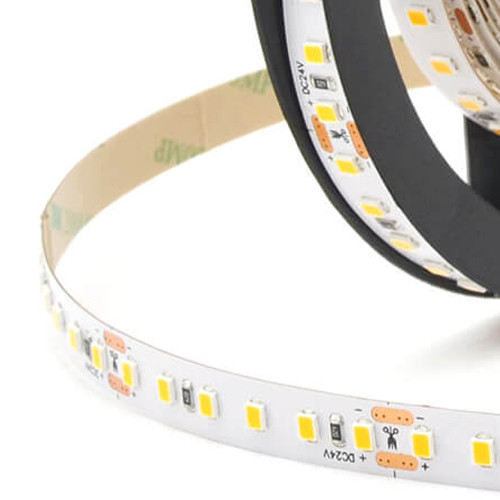

10mm Led strip ribbon light SMD2835 24V and 12V RA90 cold white RoHS qualified 3step MacAdam
Quick Detail:
· COVEFLEX POP, DC24V.
· 120LEDs/m
· CRI80 and CRI90 optional..
· One Bin Only
· Maximum run length 5M
· IP20 protected
· CE, RoHS, Reach, UL compliant
· Life Span >54000H
· 5 Year Warranty
Description:
LED strip 3 step MacAdam with 50mm unit cut for all indoor applications, 5years warranty and Sanan LED chip with CRI 80 and CRI90 optional for different projects.
Specifications:
| Tech Date | |
| Model | COVEFLEX POP WHT 6500K |
| LED Type | SMD 2835 |
| Beam Angle | 120° |
| LED PIN Temperature | Max.65℃ |
| Storage Temperature | -25℃ ～ +60℃ |
| Life span | >54000hrs |
| Certification | CE, RoHS, Reach, UL |
| IP Grade | IP20 |
| Warranty | 5 Years |
| Max. Run Length | 5M |
| CRI | Ra90 |
| LED Color | White |
| Voltage | DC24V(23.5Vmin, 24.5Vmax) |
| Color Temperature | 6500K |
| Chromaticity Coordinates (x and y) | x=0.463 / y=0.42 |
| Power(W/M) | 4.8W/M,9.6W/M,14.4W/M,19.2W/M,24W/M, |
| LM/M | 1457lm @14.4W/M |
| Efficiency(LM/W) | 101lm/w |
Notices:
1. The LED strip bending radius is 50mm. Please do not fold with sharp angle or twist the LED strip.
2. It will be likely to destroy the LED strip if exceed the maximum rated operating voltage.
3. Please do not connect the LED strip beyond the maximum connecting length.
Applications:
COVEFLEX POP WHT widely used in indoor decoration, lighting with large scale backlight. Whether in the hotel lobby, bedroom, or any indoor space, it can provide the lighting you need.
FAQ:
Commercial CE RoHS Reach UL Certificate Indoor IP20
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: 2-4 weeks after payment.
Q3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: Ship by DHL, UPS, FedEx or TNT. It takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for led light?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 3-5 years warranty to our products.
Q8: How to deal with the faulty?
A: All LED strip are warranted to be free from defects in product itself for 3 years from the date of purchase.
This warranty does not cover failures due to abuse, misuse, improper handling, act of nature, negligence, normal wear, accidental damage, modifications or repairs made by the purchaser or incorrect voltage conditions.
