Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | JRLite OEM/ODM |
| Certification: | UL / TUV / CE / ROHS / REACH |
| Model Number: | LEDLINE ASTON 1220 -IQ |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1PC |
| Price: | Negotiable |
| Packaging Details: | On ESD Bag,on shipping box, without LOGO. Standard 5Mtr/reel, different lengths can be offered if needed. |
| Delivery Time: | 3-4 weeks after payment |
| Payment Terms: | D/P T/T Paypal |
| Supply Ability: | IP20 LED strip 50000m per day |
|
Detail Information |
|||
| Model: | LEDLINE ASTON 1220 -IQ | Life span: | >54000hrs |
|---|---|---|---|
| Certification: | CE, RoHS, Reach, UL | Warranty: | 5 Years |
| CRI: | Ra80 | LED Color: | Dual White |
| Max. Run Length: | 5 M | Unit Cut: | 50mm |
Product Description

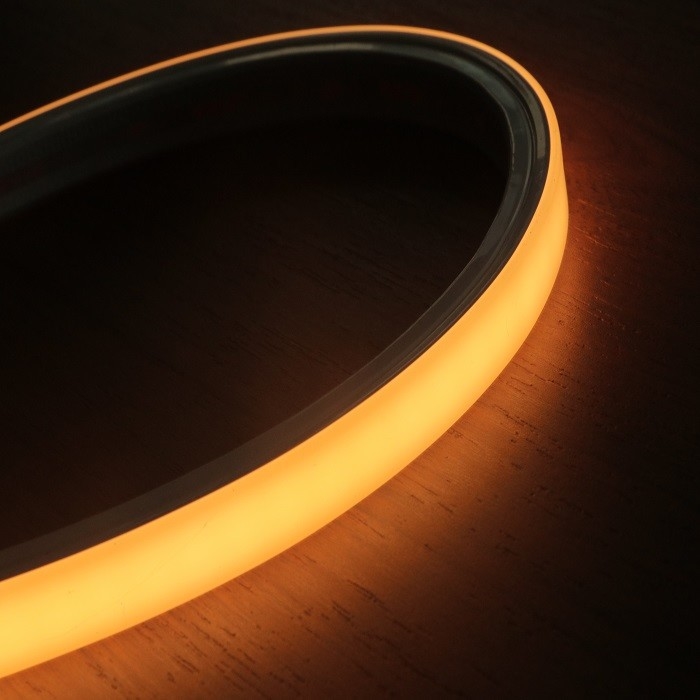

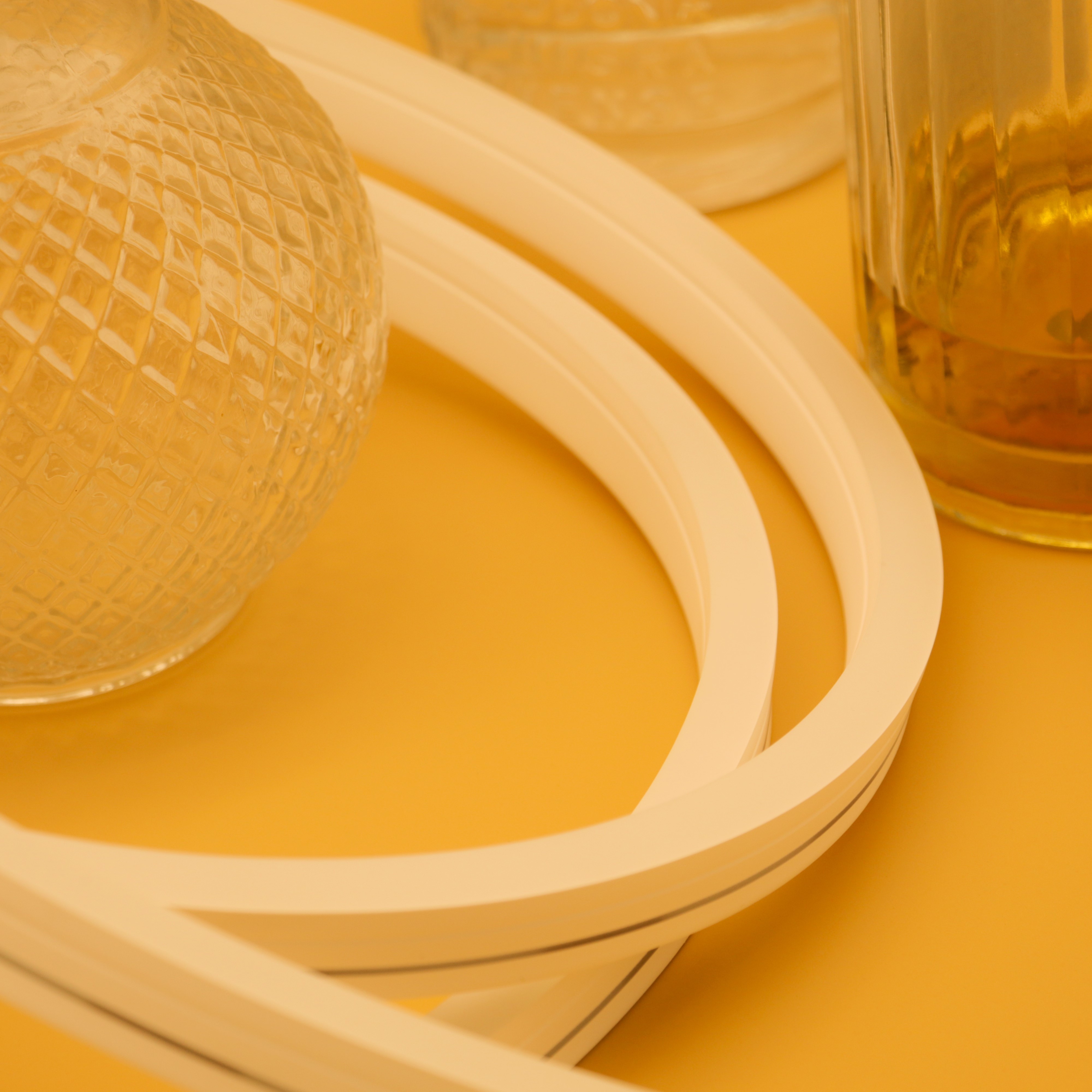

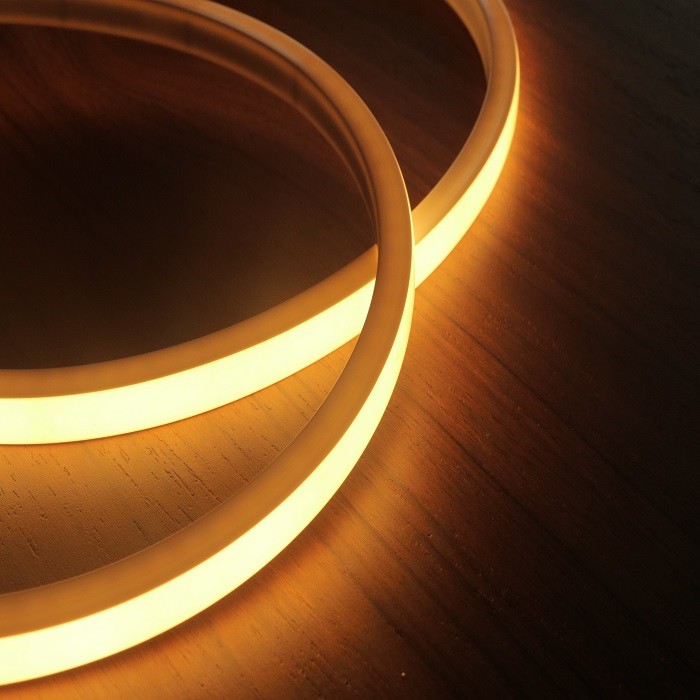

Dual White 2700K+5300K Offer Dot-Free Light Effect 12mm x 20mm IP67 3 step
Description:
- end caps with 3 cable ways for your seamless connection
- DIY endcap, after cutting free to make the re-connection , fast support your project on site.
- Dual white color can meet your projects need in different color effect
Quick Detail:
· IP67 Silicon material, IP67 protected,
· Size 12x20mm(WxH) / 0.47" x 0.79"(WxH)
· Famous Lumileds LED Chip makes it reliable
· 3 Step MacAdam bin ensure color color consistency
· Totally dot free lighting effect
· 120º beam projection
· Cable entry directions: Front/Side/Bottom cable entry
· CE, RoHS, Reach, UL compliant
· Flexible installation with the clips or profile
· Excellent performance Life Span >54000H
Specifications:
| Tech Date | |
| Model | LEDLINE ASTON 1220 -IQ |
| LED PIN Temperature | Max.65℃ |
| Storage Temperature | -25℃ ～ +60℃ |
| Life span | >54000hrs |
| Certification | CE, RoHS, Reach, UL |
| IP Grade | IP67 |
| Warranty | 5 Years |
| Max. Run Length | 5M |
| CRI | Ra80 |
| LED Color | Dual White |
| Voltage | DC24V(23.5Vmin, 24.5Vmax) |
| Color Temperature | 2700K+5300K |
| Power(W/M) | 15W/M |
Download datasheet:
JRLite Linkedin: https://www.linkedin.com/company/jrlite (Neon Supplier from China)
Notices:
1. Please light it up for a quick check before installation.
2.Bending diameter of LEDLINE ASTON 1220 IQ is 240mm, do not bend to upward or downward direction, or bend too sharp or twist. If bend it wrongly, PCB inside will be damaged and the lighting fixture will not turn on.
3. During installation, please make sure there are at least two workers to cooperate together and strictly follow the instruction manuals.
4. Warranty: All LED light are warranted to be free from defects in product itself for 5 years from the date of purchase. This warranty does not cover failures due to abuse, misuse, improper handling, act of nature, negligence, normal wear, accidental damage, modifications or repairs made by the purchaser or incorrect voltage conditions.
Applications:
Idea for hotel, restaurant, handrails lighting,shop, residential, offices lighting and architectural lighting, object integration and signage.
FAQ:
Commercial CE RoHS Reach UL Certificate Indoor IP20
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: 2-4 weeks after payment.
Q3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: Ship by DHL, UPS, FedEx or TNT. It takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for led light?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
