Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | JRLite OEM/ODM |
| Certification: | UL/TUV/CE/ROHS/REACH |
| Model Number: | ERP 2835 HE 160 WHT 6500K |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | On ESD Bag,on shipping box, without LOGO. Standard 5Mtr/reel, different lengths can be offered if needed. |
| Delivery Time: | 3-4 weeks after payment |
| Payment Terms: | D/P, T/T，Paypal |
| Supply Ability: | IP20 LED strip 50000m per day |
|
Detail Information |
|||
| Model: | ERP 2835 HE 160 WHT 6500K | SMD Type: | 2835 |
|---|---|---|---|
| CCT: | 6500K | Life span: | >54000hrs |
| Certification: | CE, RoHS, Reach, UL | IP Grade: | IP20 |
| Warranty: | 5 Years | Efficiency(LM/M): | 116LM/M |
| High Light: | IP67 LED Strip Tape Light,IP65 LED Strip Epistar 2835,LED Strip Tape Light 6500K |
||
Product Description

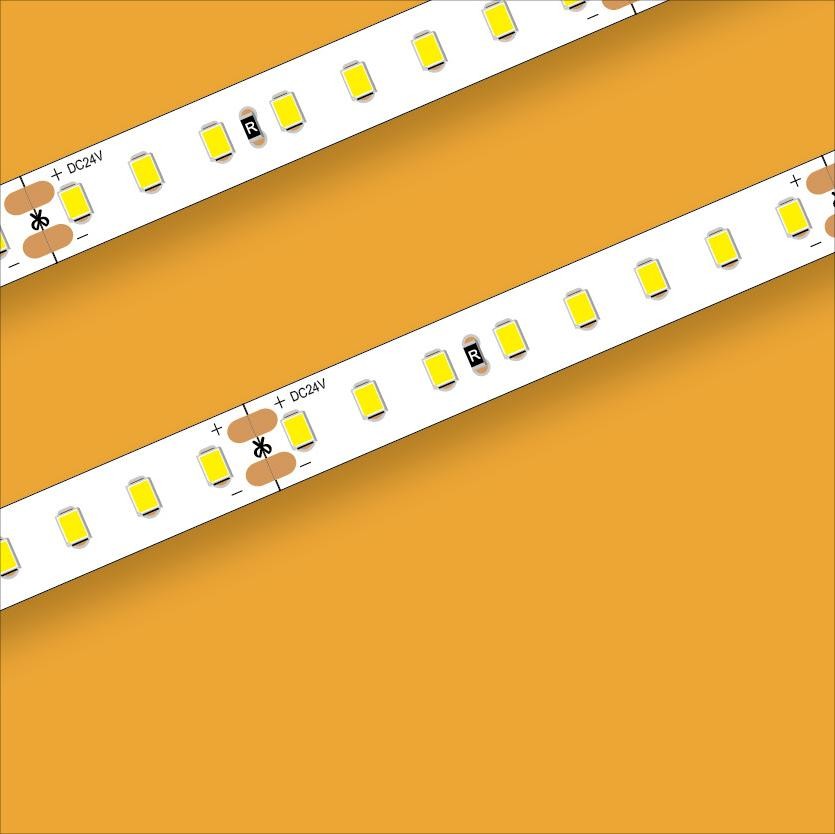

Three energy efficiency classes IP20 IP65 IP67 Led strip tape light 6500K
Quick Detail:
· Voltage: DC24V
· PCB Width: 10mm
· LED Quantity: 160LED/m
· Cutting Interval: 50mm
· Max Wattage: 9.6W/m
· CRI: Ra90
· CCT: 6500K
· Max Run length: 3m
· IP Rating: IP20
· Efficacy: 116LM/W
· CE, RoHS, TUV, UL compliant
· 5 Year Warranty
· Energy efficacy class: F
Description:
- High lumen efficiency with Ra90 to achieve energy saving.
- One BIN Only ensures perfect color consistency.
Specifications:
Electrical / Optical Characteristics (Ta=-25℃-45℃)
| Model | ERP 2835 HE 160 WHT 6500K |
| SMD Type | 2835 |
| LEDs/m | 160LEDs/m |
| LED Power | 9.6W/m |
| LED Color | 6500K |
| Input Voltage | DC24V |
| Ra | >90 |
| PCB Wdith | 10mm |
| Unit cut | 50mm |
| IP Grade | IP20 |
| Storage Temperature | -25℃ /-13℉min, 60℃ /140℉max |
| Life Span | >54000H |
| Certification | CE, RoHS, TUV,REACH, UL |
| Warranty | 5 years |
| Efficiency(LM/M) | 116LM/M |
Download datasheet:ERP COVEFLEX 2835 HE 160.pdf
JRLite Linkedin: https://www.linkedin.com/company/jrlite (Neon Supplier from China)
Notices:
If the led strip needs to be torn up,please make sure that the self adhesive tape is torn with the led strip,otherwise the led strip will be damaged
When installing the led strip,please note the installation technique.The led strip can be bent, but not distorted.
LED strips are low votage products,you must use the power supply(transformer).Please don,t connect the led strip directly to the AC 110v or AC 220v,otherwise it will burn out the LED strips.
Clean up the installation surface,it will ensure the reliability of the adhesive,The electrical connection process must be operated by a professional person.
FAQ
Commercial CE RoHS Reach UL Certificate Outdoor IP67 Waterproof
Q1. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production.
Q2: Do you offer guarantee for the products?
A: Yes, we offer 3-5 years warranty to our products.
Q3: How to deal with the faulty?
A: All LED strip are warranted to be free from defects in product itself for 3 years from the date of purchase.
This warranty does not cover failures due to abuse, misuse, improper handling, act of nature, negligence, normal wear, accidental damage, modifications or repairs made by the purchaser or incorrect voltage conditions.
