Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | JRLite OEM/ODM |
| Certification: | UL/TUV/CE/ROHS/REACH |
| Model Number: | ERP 2835 HE 80 WHT 6500K |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | On ESD Bag,on shipping box, without LOGO. Standard 5Mtr/reel, different lengths can be offered if needed. |
| Delivery Time: | 3-4 weeks after payment |
| Payment Terms: | D/P, T/T，Paypal |
| Supply Ability: | IP20 LED strip 50000m per day |
|
Detail Information |
|||
| Model: | ERP 2835 HE 80 WHT 6500K | LED Type: | SMD2835 |
|---|---|---|---|
| LED Quantity: | 80leds/m | Certification: | CE, RoHS, Reach, UL |
| LED PIN Temperature: | Max.65℃ | CRI: | Ra90 |
| Working Lifetime(hour): | 54000 | Light Source: | LED |
| High Light: | SMD2835 10mm LED Strip 6500K,6500k rope light IP20,LED Strip 6500K Indoors Outdoors |
||
Product Description

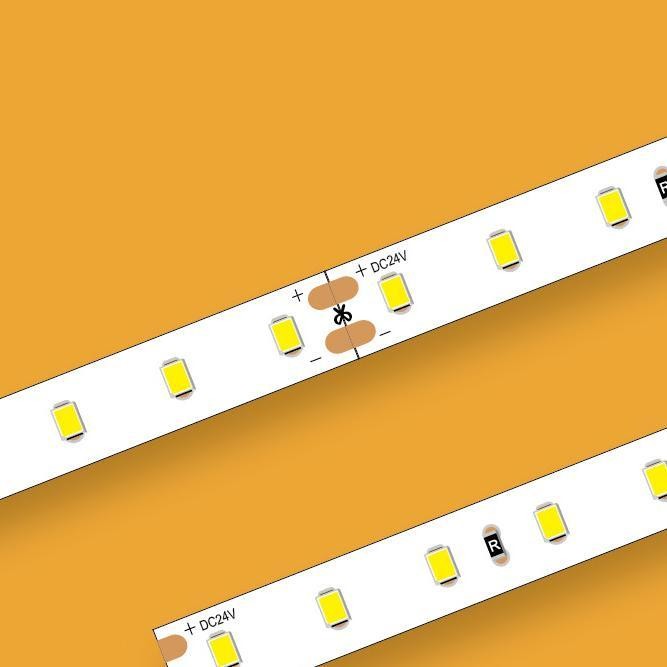

ERP LED Strip 5 year warranty DC24V SMD2835 10mm wide 6500K for indoors&outdoors
Quick Detail:
· Size 10mm Width PCB
· SMD2835 Strip
· Maximum run length 3M@4.8W/m
· IP20
· Indoor application
· CE, RoHS, Reach, UL compliant
· Life Span >54000H
· 5 Year Warranty
Description:
- High lumen efficiency with Ra90 to achieve energy saving.
- One BIN Only ensures perfect color consistency.
- CRI80 and CRI90 optional.
Specifications:
Electrical / Optical Characteristics (Ta=-25℃-45℃)
| Tech Date | |
| Model | ERP 2835 HE 80 WHT -6500K |
| LED Type | SMD2835 |
| LED Quantity | 80leds/m |
| Beam Angle | 120° |
| LED PIN Temperature | Max.65℃ |
| Storage Temperature | -25℃ ～ +60℃ |
| Life span | >54000hrs |
| Certification | CE, RoHS, Reach, UL |
| IP Grade | IP20 |
| Warranty | 5 Years |
| Max. Run Length | 3m |
| CRI | Ra90 |
| SDCM(Finished Product) | <6 |
| Lumen Maintenance Factor | 0.96 |
| Voltage | DC24V(23.5Vmin, 24.5Vmax) |
| Color Temperature | 6500K |
| Power(W/M) | 4.8W/m |
| Lumen/0.5M | 116lm/m |
| Energy Efficiency Class | F |
Download datasheet:ERP COVEFLEX 2835 80.pdf
JRLite Linkedin: https://www.linkedin.com/company/jrlite (Neon Supplier from China)
Notices:
If the led strip needs to be torn up,please make sure that the self adhensive tape is torn with the led strip,otherwise the led strip will be damaged
When install the led strip,please note the installation technique.The led strip can be bent, but not distorted.
LED strips are low votage products,you must use the power supply(transformer).Please don,t connect the led strip directly to the AC 110v or AC 220v,otherwise it will burn out the LED strips.
Clean up the installation surface,it will ensure the reliability of the adhesive,The electrical connection process must be operated by a professional person.
Applications:
Especially suitable for projects which requires high lumen efficiency to achieve
energy saving.
It’s ideal for any indoor lighting applications.
With the use of profiles, the light effect will be more uniform and soft.
FAQ
Commercial CE RoHS Reach UL Certificate Outdoor IP67 Waterproof
Q1: Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available.
Q2: How do you ship the goods and how long does it take to arrive?
A: Ship by DHL, UPS, FedEx or TNT. It takes 3-5 days to arrive. Airline and sea shipping also optional.
Q3: How to proceed an order for led light?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
