Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | JRLite OEM/ODM |
| Certification: | UL/TUV/CE/ROHS/REACH |
| Model Number: | ERP 2835 HE 240 WHT 3000K |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | On ESD Bag,on shipping box, without LOGO. Standard 5Mtr/reel, different lengths can be offered if needed. |
| Delivery Time: | 3-4 weeks after payment |
| Payment Terms: | D/P, T/T，Paypal |
| Supply Ability: | IP20 LED strip 50000m per day |
|
Detail Information |
|||
| Model: | ERP 2835 HE 240 WHT 3000K | Unit Cut: | 33.33mm |
|---|---|---|---|
| LEDs/m: | 240LEDs/m | LED Power: | 19.2W/m |
| LED Color: | 3000K | Input Voltage: | DC24V |
| Cri: | >90 | Emitting Color: | White |
| High Light: | 3000K warm white led strip,SMD 2835 Indoor LED Strip,warm white led strip DC24V |
||
Product Description

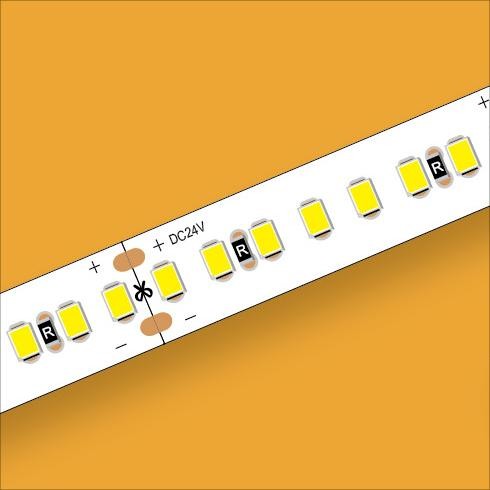

Warm white LED strip SMD 2835 3000K with DC24V for indoor
Quick Detail:
· Voltage: DC24V
· PCB Width: 10mm
· LED Quantity: 240LED/m
· Cutting Interval: 33.3mm
· Max Wattage: 19.2W/m
· CRI: Ra90
· CCT: 3000K
· Max Run length: 3m
· IP Rating: IP20
· Efficacy: 107LM/W
· CE, RoHS, TUV, UL compliant
· Energy efficacy class: F
Description:
- One BIN Only ensures perfect color consistency.
- SDCM 3.
Specifications:
Electrical / Optical Characteristics (Ta=-25℃-45℃)
| Model | ERP 2835 HE 240 WHT 3000K |
| Energy efficacy class | F |
| LEDs/m | 240LEDs/m |
| LED Power | 19.2W/m |
| LED Color | 3000K |
| Input Voltage | DC24V |
| Ra | >90 |
| PCB Wdith | 10mm |
| Unit cut | 33.3mm |
| IP Grade | IP20 |
| Storage Temperature | -25℃ /-13℉min, 60℃ /140℉max |
| Life Span | >54000H |
| Certification | CE, RoHS, TUV,REACH, UL |
| Warranty | 5 years |
| Efficiency(LM/0.5M) | 1028LM/M |
Download datasheet:ERP COVEFLEX 2835 240 HE.pdf
JRLite Linkedin: https://www.linkedin.com/company/jrlite (Neon Supplier from China)
Notices:
If the led strip needs to be torn up,please make sure that the self adhensive tape is torn with the led strip,otherwise the led strip will be damaged
When install the led strip,please note the installation technique.The led strip can be bent, but not distorted.
LED strips are low votage products,you must use the power supply(transformer).Please don,t connect the led strip directly to the AC 110v or AC 220v,otherwise it will burn out the LED strips.
Clean up the installation surface,it will ensure the reliability of the adhesive,The electrical connection process must be operated by a professional person.
FAQ
Commercial CE RoHS Reach UL Certificate Outdoor IP67 Waterproof
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: 2-4 weeks after payment.
Q3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available.
