Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | JRLite OEM/ODM |
| Certification: | UL / TUV / CE / ROHS / REACH |
| Model Number: | ERP 2835 210 WHT 3000K |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | On ESD Bag,on shipping box, without LOGO. Standard 5Mtr/reel, different lengths can be offered if needed. |
| Delivery Time: | 3-4 weeks after payment |
| Payment Terms: | D/P T/T Paypal |
| Supply Ability: | IP20 LED strip 50000m per day |
|
Detail Information |
|||
| Model: | ERP 2835 210 WHT 3000K | LED Type: | SMD2835 |
|---|---|---|---|
| LED Quantity: | 210leds/m | Life span: | >54000hrs |
| Warranty: | 5 Years | CRI: | Ra90 |
| Cutting Unit: | 33.3mm | Input Voltage: | 24V DC |
| High Light: | 24v SMD 2835 LED Strip,3000k LED Strip Warm white,SMD 2835 LED Strip IP20 |
||
Product Description

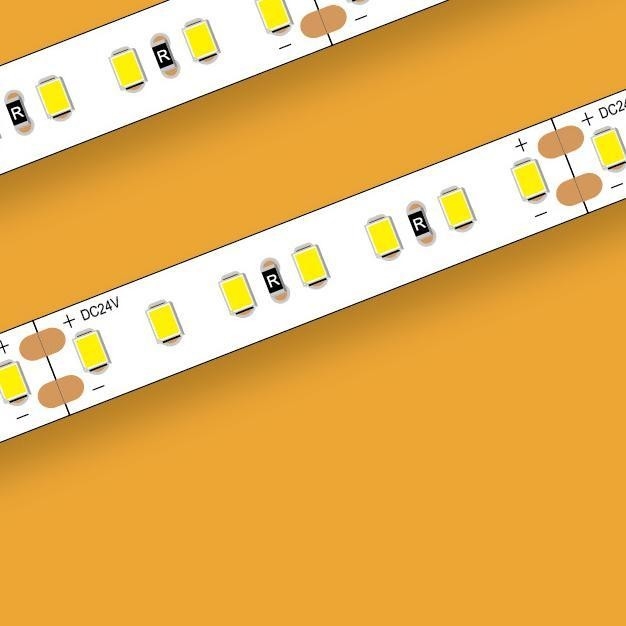

ERP led Strip 24V 2835 93LM/W WHT 3000K 210LEDs per meter
Quick Detail:
· Size 10mm Width PCB
· SMD2835 Strip
· Maximum run length 5M@19.2W/m
· IP20
· Indoor application
· CE, RoHS, Reach, UL compliant
· Life Span >54000H
· LED chip: SDCM 3
Specifications:
Electrical / Optical Characteristics (Ta=-25℃-45℃)
| Tech Date | |
| Model | ERP COVEFLEX 2835 210-3000K |
| LED Type | SMD2835 |
| LED Quantity | 210leds/m |
|
Max.run Length
|
5M |
| SDCW | 3 Step |
| Life span | >54000hrs |
| Certification | CE, RoHS, Reach, UL |
| IP Grade | IP20 |
| Warranty | 5 Years |
| Max. Run Length | 5M |
| CRI | Ra90 and Ra80 Optional |
| SDCM(Finished Product) | <6 |
| Working Energy Consumption(kWh/1000h) 0.5m | 9.6 |
| Lumen Maintenance Factor | 0.96 |
| LED Color | Warm white |
| Voltage | DC24V(23.5Vmin, 24.5Vmax) |
| Color Temperature | 3000K |
| Power(W/M) | 19.2W/m |
| Lumen/0.5M | 93lm/m |
| Energy Efficiency Class | G |
Download datasheet: ERP COBEFLEX 2835 210.pdf
Notices:
If the led strip needs to be torn up,please make sure that the self adhensive tape is torn with the led strip,otherwise the led strip will be damaged
When install the led strip,please note the installation technique.The led strip can be bent, but not distorted.
LED strips are low votage products,you must use the power supply(transformer).Please don,t connect the led strip directly to the AC 110v or AC 220v,otherwise it will burn out the LED strips.
Clean up the installation surface,it will ensure the reliability of the adhesive,The electrical connection process must be operated by a professional person.
FAQ:
Commercial CE RoHS Reach UL Certificate Indoor IP20
Q1: Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production.
Q2: Do you offer guarantee for the products?
A: Yes, we offer 3-5 years warranty to our products.
Q3: How to deal with the faulty?
A: All LED strip are warranted to be free from defects in product itself for 3 years from the date of purchase.
This warranty does not cover failures due to abuse, misuse, improper handling, act of nature, negligence, normal wear, accidental damage, modifications or repairs made by the purchaser or incorrect voltage conditions.
