Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | JRLite OEM/ODM |
| Certification: | UL / TUV / CE / ROHS / REACH |
| Model Number: | ERP COVEFLEX 2835 70 WHT 6500K |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | On ESD Bag,on shipping box, without LOGO. Standard 5Mtr/reel, different lengths can be offered if needed. |
| Delivery Time: | 3-4 weeks after payment |
| Payment Terms: | D/P T/T Paypal |
| Supply Ability: | IP20 LED strip 50000m per day |
|
Detail Information |
|||
| Model: | ERP COVEFLEX 2835 70 WHT 2700K | Power(W/M): | 4.8W/M |
|---|---|---|---|
| LM/0.5M: | 241LM | Efficiency(LM/W): | 100lm/w |
| Energy Efficiency Class: | F | Input Voltage(v): | DC24V |
| Working Lifetime(hour): | >54000H | CRI: | 90 |
| High Light: | 2700K Waterproof Led Strip Lights,SMD2835 Waterproof Led Strip Lights,2700K SMD Led Flexible Strips |
||
Product Description

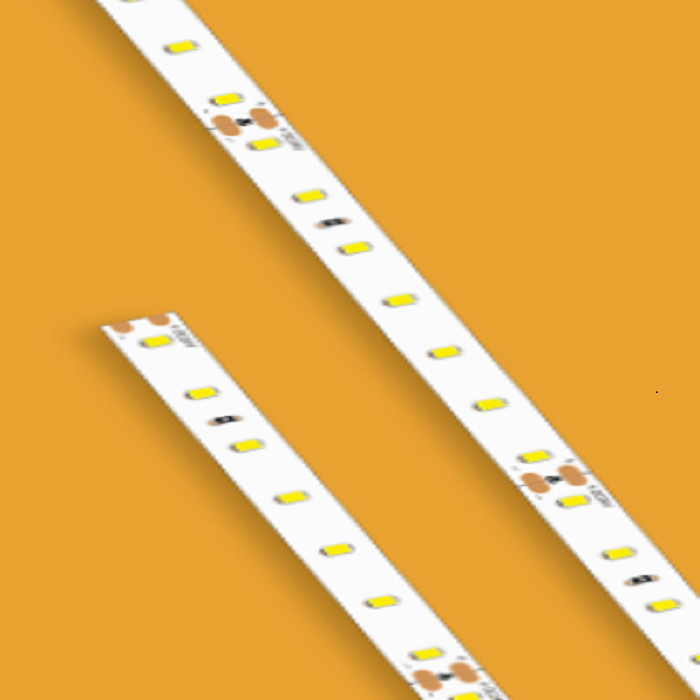

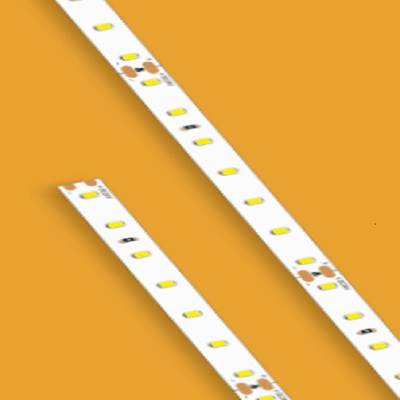

SMD2835 WHT 2700K Waterproof Led Strip Lights DC24V Input Voltage
ERP SMD Type 2835 70 LEDs/m WHT 2700K 4.8W/M 197LM/0.5M 3 Step
Description:
- One BIN Only ensures perfect color consistency.
- Long lifespan and excellent in heat dissipation.
- 5 years warranty
Quick Detail:
· ERP COVEFLEX 2835 70, 2700K.
· CRI80 and CRI90 optional.
· SDCM 3, One Bin Only
· Maximum run length 5M
· Unit cut is 100mm
· IP20
· CE, RoHS, Reach, UL compliant
· Life Span >54000H
· 5 Year Warranty
Specifications:
| Tech Date | |
| Model | ERP COVEFLEX 2835 70 WHT 2700K |
| LED Type | SMD 2835 |
| Beam Angle | 120° |
| LED PIN Temperature | Max.65℃ |
| Storage Temperature | -25℃ ～ +60℃ |
| Life span | >54000hrs |
| Certification | CE, RoHS, Reach, UL |
| IP Grade | IP20 |
| Warranty | 5 Years |
| Max. Run Length | 5M |
| CRI | Ra>90 |
| LED Color | White |
| Voltage | DC24V(23.5Vmin, 24.5Vmax) |
| Color Temperature | 2700K |
| Chromaticity Coordinates (x and y) | x=0.463 / y=0.42 |
| Power(W/M) | 4.8W/M, |
| LM/0.5M | 241lm |
| Efficiency(LM/W) | 82lm/w |
| Energy Efficiency Class | F |
Download datasheet: ERP COVEFLEX 2835 70.pdf
JRLite Linkedin: https://www.linkedin.com/company/jrlite (Neon Supplier from China)
Notices:
1. Please do not fold over the maximum radius.
2. It will be likely to destroy the LED strip if exceed the maximum rated operating voltage.
3. Please do not connect the LED strip beyond the maximum connecting length.
FAQ:
Commercial CE RoHS Reach UL Certificate Indoor IP20
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: 2-4 weeks after payment.
Q3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available.
