Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | JRLite OEM/ODM |
| Certification: | CE/ RoHS/ TUV/ UL/ GB/ KC |
| Model Number: | LEDLINE ASTON 1615 3500K |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | On ESD Bag,on shipping box, without LOGO. Standard 5Mtr/reel, different lengths can be offered if needed. |
| Delivery Time: | 3-4 weeks after payment |
| Payment Terms: | D/P T/T Paypal |
| Supply Ability: | IP20 LED strip 50000m per day |
|
Detail Information |
|||
| Voltage: | DC24V | Neon Size: | 16mm*15mm |
|---|---|---|---|
| IP Rating: | IP67 | CCT: | 3500K |
| Model: | LEDLINE ASTON 1615 WHT -35 | LED Color: | 3500K |
| Working Lifetime(hour): | 54000 | Cri (ra>): | 93 |
| High Light: | IP67 Silicone Neon Strip,3500K Silicone Neon Strip,DC24V LED Neon Strip |
||
Product Description

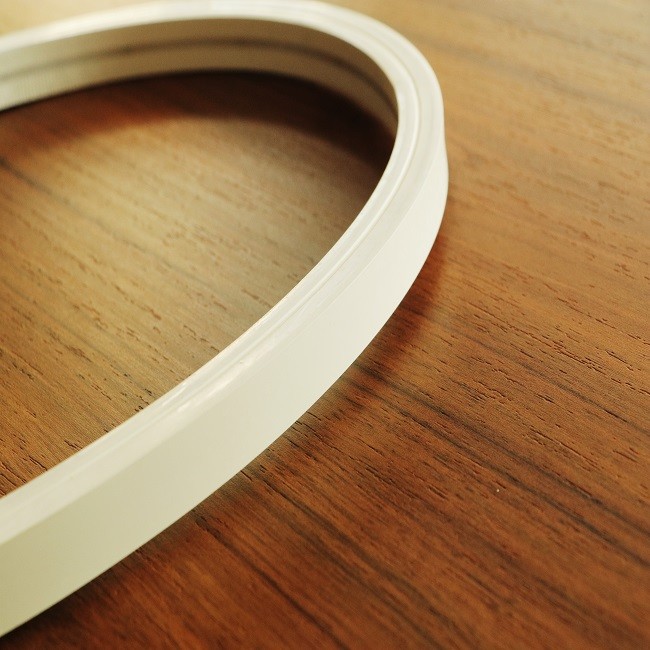

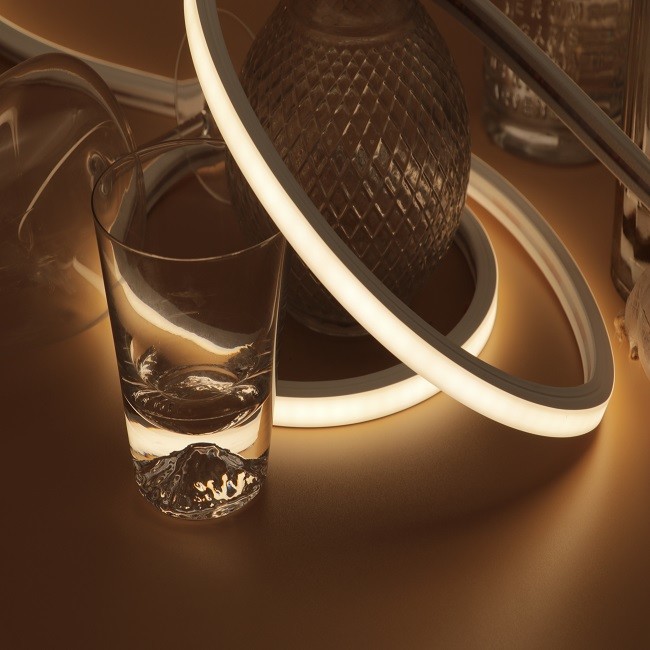

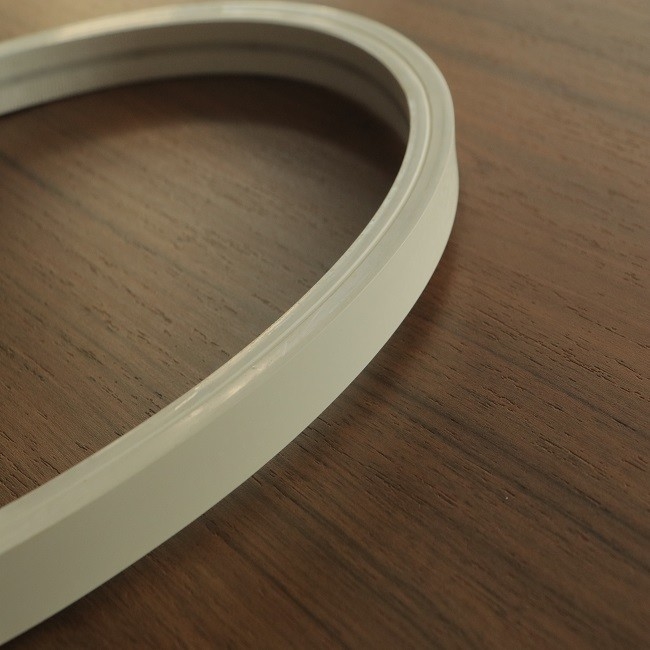

IP67 Silicone Neon Strip CCT 3500K DC24V Flex Vertical Bending
Neon flex silicone light IP67 vertical bending UL and CE certification 3500K DC24V
Description:
- Facade lighting, contour lighting and landscape lighting.
- Solutions for retail shops.
- Signage and illuminated advertising.
- Ideal for architectural lighting, coves, object integration.
Quick Detail:
· Voltage: DC24V
· Neon Size: 16mm*15mm
· Bending Direction: Top bending (vertical bending)
· Cutting Interval: 50mm
· Max Wattage: 10W/m
· CRI: Ra93
· CCT: 3500K
· Max Run Length: 5w/27m 10w/17m 15w/14m
· IP Rating: IP67
Specifications:
| Model | LEDLINE ASTON 1615 WHT -35 |
vertical bending radius | 120mm |
| LEDs/m | 120LEDs/m |
| LED Power | 5/10/15W/m |
| LED Color | 3500K |
| Input Voltage | DC24V |
| Ra | >93 |
| Neon Dimension | 16mm*15mm |
| Unit cut | 50mm |
| IP Grade | IP67 |
| Storage Temperature | -25℃ /-13℉min, 60℃ /140℉max |
| Life Span | >54000H |
| Certification | CE, RoHS, TUV,REACH, UL |
| Warranty | 5 years |
Download datasheet:LEDLINE ASTON 1615 WHT.pdf
JRLite Linkedin: https://www.linkedin.com/company/jrlite (Neon Supplier from China)
Notices:
1. Please light it up for a quick check before installation.
2. Bending diameter of LEDLINE ASTON 1615 WHT is 240mm, do not bend to the side direction, or bend too sharp or twist. If bend wrongly, PCB inside will be damaged and the lighting fixture will not turn on.
3. During installation, please make sure there are at least two workers cooperating together and strictly follow the instruction manuals.
FAQ:
Commercial CE RoHS Reach UL Certificate Outdoor Underwater IP68 Waterproof
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample orders to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: 2-4 weeks after payment.
Q3. Do you have any MOQ limit for the led light order?
A: Low MOQ, 1pc for sample checking is available.
