Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | JRLite OEM/ODM |
| Certification: | UL / TUV / CE / ROHS / REACH |
| Model Number: | COVEFLEX MERA-30 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1PC |
| Price: | Negotiable |
| Packaging Details: | On ESD Bag,on shipping box, without LOGO. Standard 5Mtr/reel, different lengths can be offered if needed. |
| Delivery Time: | 3-4 weeks after payment |
| Payment Terms: | D/P T/T Paypal |
| Supply Ability: | IP20 LED strip 50000m per day |
|
Detail Information |
|||
| Model: | MERA-30 | Storage Temperature: | -25℃ ～ +60℃ |
|---|---|---|---|
| Lumen: | 1899lm/m | Power(W/M): | 14.4W/m |
| Life span: | >54000hrs | Color Temperature: | 2700K |
| Input Voltage(v): | DC24V | Type: | Flex LED Strips |
| Light Source: | LED | ||
| High Light: | 3000K 2835 SMD LED Strip Light,3000K LED Tape Light,Ra90 Underwater Led Strip Lights |
||
Product Description

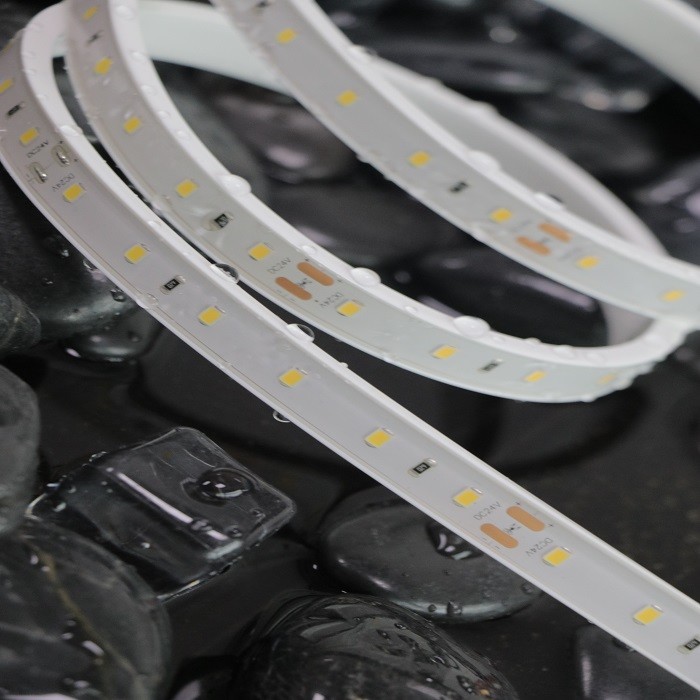

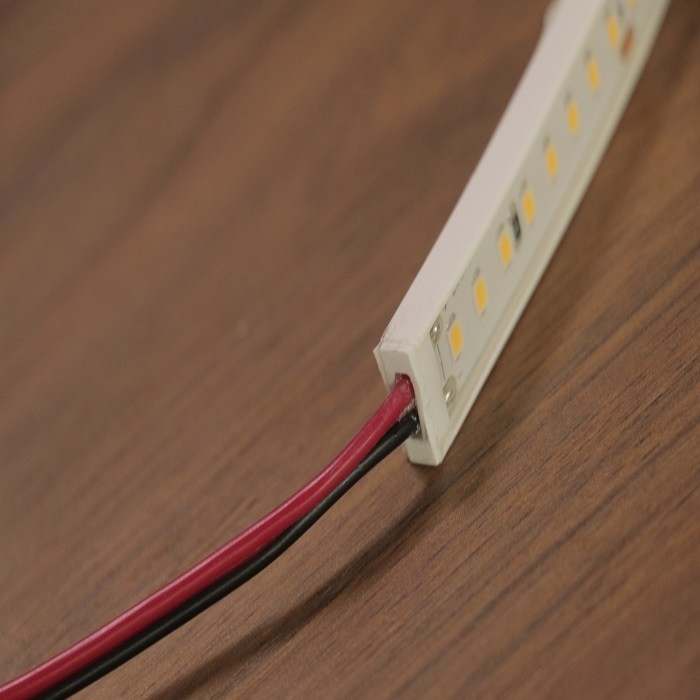

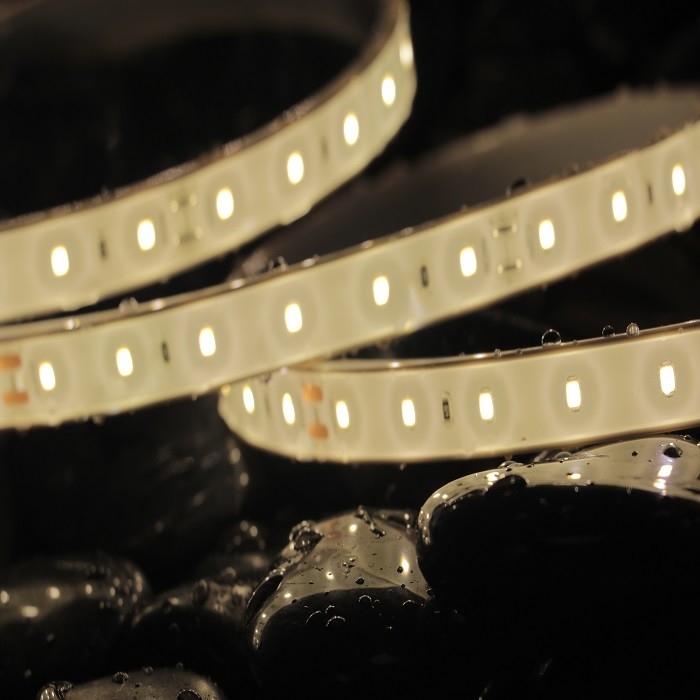

Underwater 3000K 2835 SMD LED Strip Light High Lumen Effciency Ra90
LED tape light 24VDC IP68 3000K 2835 high lumen for underwater application
Description:
- High lumen efficiency with 130LM/W @Ra90 to realize energy saving.
- High waterproof rate-IP68,available for outdoor and underwater applications.
Quick Detail:
· Size 10mm Width PCB
· SMD2835 Strip
· 160LEDs/m
· Maximum run length 5M@19W/m
· IP68 rating
· CE, RoHS, Reach, UL compliant
· Life Span >54000H
· 5 Year Warranty
· Unit cut: 50mm
· High lumen efficiency with 130LM/W @Ra90
Specifications:
| Tech Date | |
| Model |
COVEFLEX MERA-30
|
| LED Type | SMD2835 |
| LED Quantity | 160leds/m |
| LED PIN Temperature | Max.65℃ |
| Storage Temperature | -25℃ ～ +60℃ |
| Life span | >54000hrs |
| Certification | CE, RoHS, Reach, UL |
| IP Grade | IP68 |
| Warranty | 5 Years |
| Max. Run Length | 5M@14.4W/m |
| CRI | Ra90 |
| Unit Cut | 50mm |
| LED Color | Warm white |
| Voltage | DC24V(23.5Vmin, 24.5Vmax) |
| Color Temperature | 2700K |
| Power(W/M) | 14.4W/m |
| Lumen | 1899lm/m |
Download datasheet: COVEFLEX MERA Datasheet.pdf
JRLite Linkedin: https://www.linkedin.com/company/jrlite (Neon Supplier from China)
Applications:
- It is ideal for any indoor or outdoor wet applications including underwater.
- Easy mounting on many smooth surfaces with self-adhesive tape at the back and clips.
- Also good idea to install it with Aluminum profile plus opal cover to reach dot free.
FAQ:
Commercial CE RoHS Reach UL Certificate Indoor IP20
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: 2-4 weeks after payment.
Q3: How to deal with the faulty?
A: All LED strip are warranted to be free from defects in product itself for 3 years from the date of purchase.
This warranty does not cover failures due to abuse, misuse, improper handling, act of nature, negligence, normal wear, accidental damage, modifications or repairs made by the purchaser or incorrect voltage conditions.
