Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | JRLite OEM/ODM |
| Certification: | UL / TUV / CE / ROHS / REACH |
| Model Number: | ASTON 0612 WHT |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1PC |
| Price: | Negotiable |
| Packaging Details: | On ESD Bag,on shipping box, without LOGO. Standard 5Mtr/reel, different lengths can be offered if needed. |
| Delivery Time: | 3-4 weeks after payment |
| Payment Terms: | D/P T/T Paypal |
| Supply Ability: | IP20 LED strip 50000m per day |
|
Detail Information |
|||
| Model: | ASTON 0612 WHT | LED Type: | Lumileds 2835 |
|---|---|---|---|
| Certification: | CE, RoHS, Reach, UL | IP Grade: | IP44/IP67 |
| Warranty: | 5 Years | Power: | 10W/M |
| Color Temperature: | 2700K/3000K/3500K/4000K/5500K | Unit Cut: | 50mm |
| High Light: | IP44 LED Neon Strip Lights,DC24V LED Neon Strip Lights,DIY Connectors Silicone Neon Strip |
||
Product Description

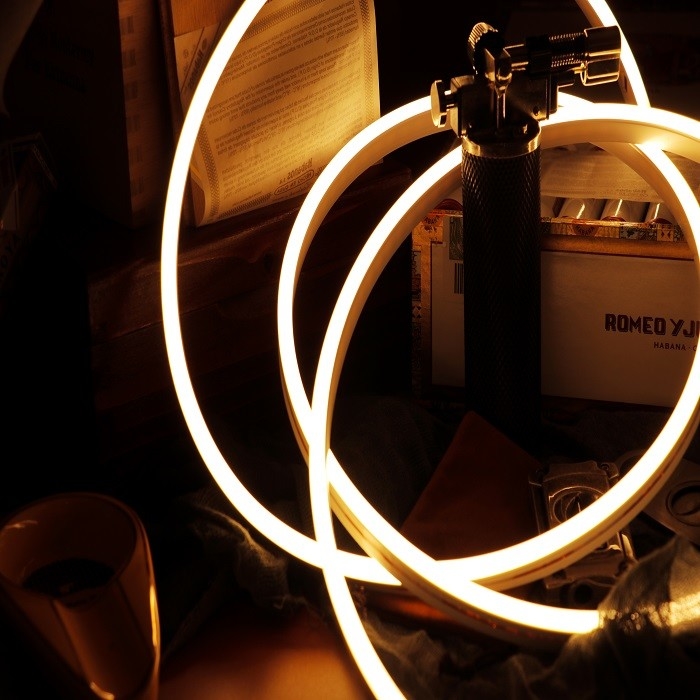

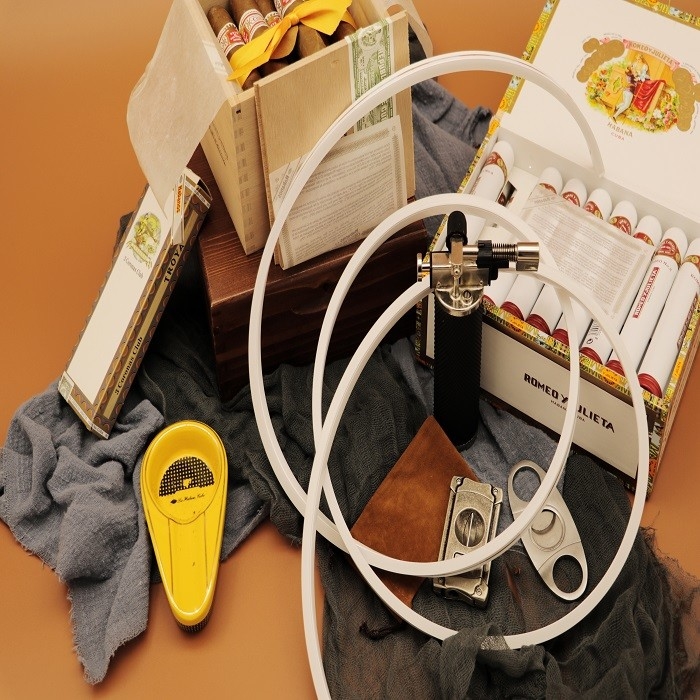

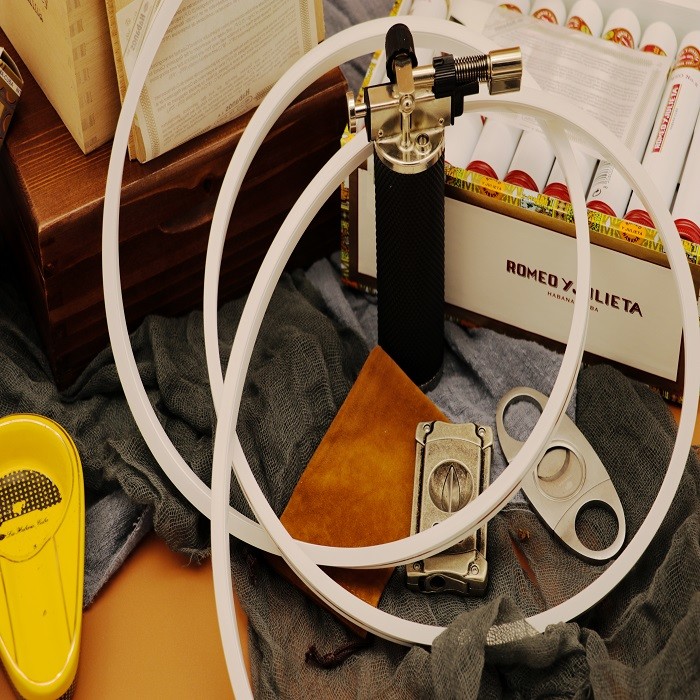

2700K-5500K IP44/IP67 Silicone LED Neon Strip Lights DC24V DIY Connectors
Quick Detail:
· Size 6mm x 12mm / 0.24" x 0.47" (W x H)
· UV-resistance(no yellowish)
· Lumileds LED
· 120º beam projection
· Maximum run length 13M@10W/m
· Cable entry directions: Front, side, bottom cable entry
· CE, RoHS, Reach, UL compliant
· Life Span >54000H
· 5 Year Warranty
Specifications:
| Tech Date | |
| Model | ASTON 0612 WHT |
| LED Type | Lumileds 2835 |
| Beam Angle | 120° |
| LED PIN Temperature | Max.65℃ |
| Storage Temperature | -25℃ ～ +60℃ |
| Life span | >54000hrs |
| Certification | CE, RoHS, Reach, UL |
| LED PIN Temperature | Max.65℃/149℉ |
| Warranty | 5 Years |
| Max. Run Length | 13M |
| CRI | Ra90 |
| LED Color | White |
| Voltage | DC24V(23.5Vmin, 24.5Vmax) |
| Power(W/M) | 10W/m |
Dowload datasheet: LEDLINE ASTON 0612 WHT.pdf
Notices:
1. Please light it up for a quick check before installation.
2. Bending diameter of LEDLINE ASTON 0612 WHT is 120mm, do not bend to top direction, or bend too sharp or twist. If bend it wrongly, PCB inside will be damaged and the lighting fixture will not turn on.
3. During installation, please make sure there are at least two workers to cooperate together and strictly follow the instruction manuals.
4. Warranty: All LED light are warranted to be free from defects in product itself for 5 years from the date of purchase. This warranty does not cover failures due to abuse, misuse, improper handling, act of nature, negligence, normal wear, accidental damage, modifications or repairs made by the purchaser or incorrect voltage conditions.
5. The given color temperature is the temperature of finished product.
Applications:
1. Top bending, better lighting performance& higher brightness, suitable for commercial lighting, general lighting, detail lighting required exquisite
designs.
2. Ideal for architectural lighting, coves, object integration.
FAQ:
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. How can you guarantee the quality?
A: Professional product quality inspection team ensures order defective rate; Otherwise, we take full responsibility according to our wholesome after-sales support system.
Q3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available.
Q4. Can we have a visit of your factory?
A: Of course. Customers are always welcome to visit our factory, we believe you will be impressed you of our prodcuts.
Q5: What are your terms of payment?
A: 100% Payment before production or 30% deposit+ 70% before shippment
