Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | JRLite OEM/ODM |
| Certification: | UL / TUV / CE / ROHS / REACH |
| Model Number: | ASTON TINI 0606 WHT |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1PC |
| Price: | Negotiable |
| Packaging Details: | On ESD Bag,on shipping box, without LOGO. Standard 5Mtr/reel, different lengths can be offered if needed. |
| Delivery Time: | 3-4 weeks after payment |
| Payment Terms: | D/P T/T Paypal |
| Supply Ability: | IP20 LED strip 50000m per day |
|
Detail Information |
|||
| Model: | ASTON TINI 0606 WHT | LED PIN Temperature: | Max.65℃ |
|---|---|---|---|
| Max. Run Length: | 5M | IP Grade: | IP44/IP67 |
| Life Span: | >36000hrs | Power(W/M): | 6W/m |
| CCT: | 2700K/3000K/3500K/4000K/5000K | CRI: | >90 |
| High Light: | RA90 Silicone Neon Strip,UV Resistant Silicone Neon Strip,24V Neon Silicone Strip |
||
Product Description

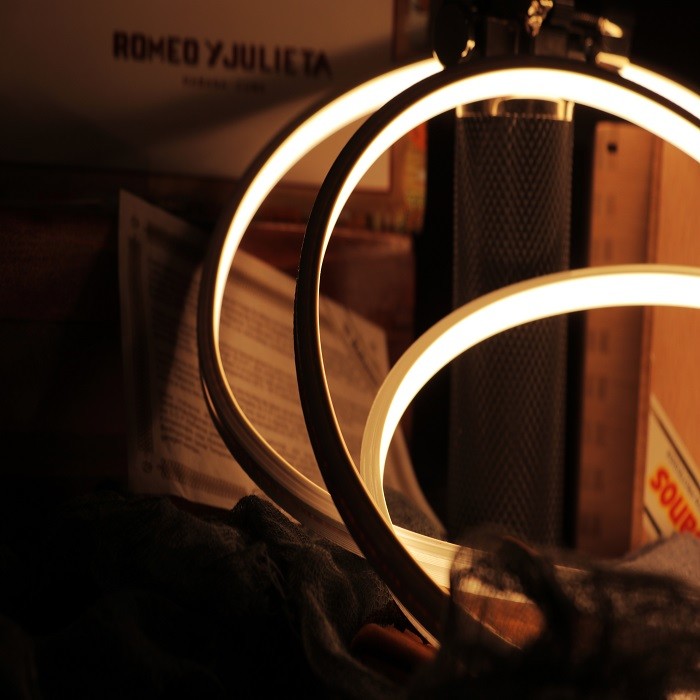

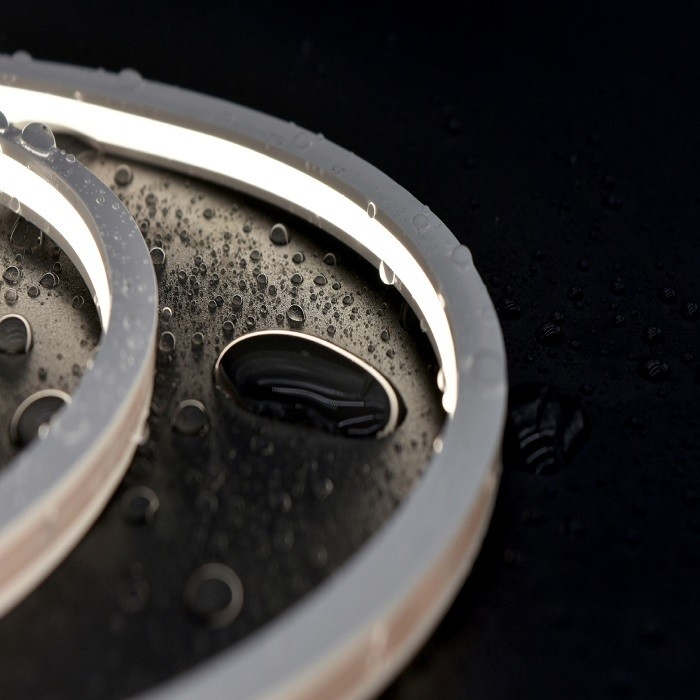

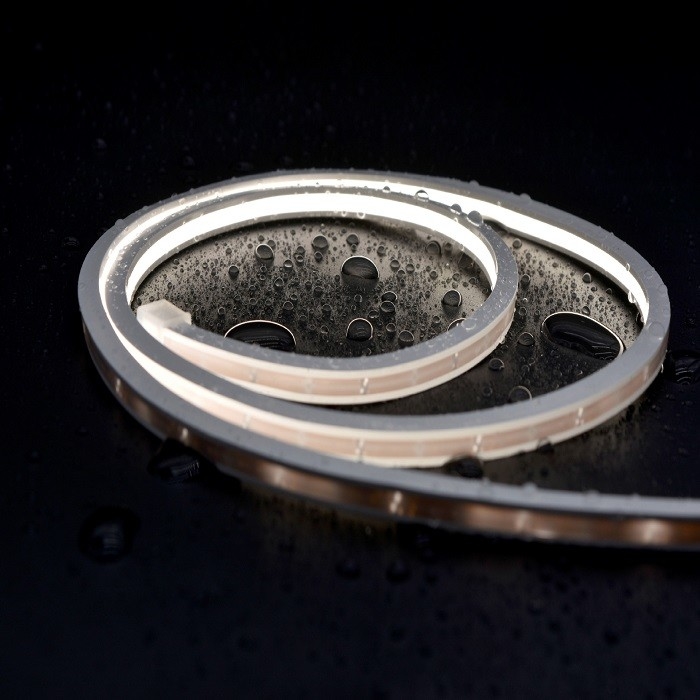

WHT 24V UV Resistant 6mm Width Neon Strip 25mm Unit Cut IP44/IP67 RA>90
Description:
- Slim and elegant, with a strong artistic sense.
- Cross section size 6mm x 6mm/0.24" x 0.24" (W x H), which is vertical bending with radius of 25mm / 0.98".
- IP44&IP67 protected are optional, UV resistant, chemical resistant for indoor & outdoor solutions.Very easy to cut & reconnect on site.
- 3-Step MacAdam bin and dot free lighting guarantee the most excellent performance over the rated lifetime.
Specifications:
| Tech Date | |
| Model | ASTON TINI 0606 WHT |
| Beam Angle | 120° |
| LED PIN Temperature | Max.65℃ |
| Storage Temperature | -25℃ ～ +60℃ |
| Life span | >36000hrs |
| Certification | CE, RoHS, Reach, UL |
| IP Grade | IP/44/IP67 |
| Warranty | 3 Years |
| Max. Run Length | 5M |
| CRI | Ra93 |
| Voltage | DC24V(23.5Vmin, 24.5Vmax) |
| Color Temperature | 2700K/3000K/3500K/4000K/5000K |
| Power(W/M) | 6W/m |
| Bending Direction | Vertical Bending |
Notices:
1. Please light it up for a quick check before installation.
2. Bending diameter of LEDLINE ASTON 0606 WHT is 50mm, do not bend to top direction, or bend too sharp or twist. If bend it wrongly, PCB inside will be damaged and the lighting fixture will not turn on.
3. During installation, please make sure there are at least two workers to cooperate together and strictly follow the instruction manuals.
4. Warranty: All LED light are warranted to be free from defects in product itself for 2years from the date of purchase. This warranty does not cover failures due to abuse, misuse, improper handling, act of nature, negligence, normal wear, accidental damage, modifications or repairs made by the purchaser or incorrect voltage conditions.
Applications:
1. Top bending, better lighting performance& higher brightness, suitable for commercial lighting, general lighting, detail lighting required exquisite
designs.
2. Ideal for KBB lighting, retail shop lighting, cabinet lighting.
3. Grand hotel, apartment, lobby hall.
4. Fits for shopping mall, flagship store, restaurant.
FAQ:
Q1. Are you a manufacturer?
A: Yes, we have our own factory and professional engineers to meet your any requirements. Welcome you to visit our factory.
Q2. OEM OR ODM accepted?
A: Yes,we can do OEM & ODM,logo on the light or package both are available.
Q3. What are your payment terms?
A: 100% Payment before production or 30% deposit+ 70% before shippment(The latter requires a single payment of more than $10,000)
Q4. Why use Silicone material?
A: 1.UV resistant, will not yellow in time.
2.Highly flexible, stable and
durable; soft to bend, fast recovery after bending.
3.For the installation environment, it can endure in -25℃ to 60℃ temperature.
4.Non sticky, easy-to-clean, no smell and no chemical reaction with detergent.
5.Premium look and feel.
Q5. How do you ship the goods and how long does it take to arrive?
A: Ship by DHL, UPS, FedEx or TNT. It takes 3-5 days to arrive. Airline and sea shipping also optional.
