Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | JRLite OEM/ODM |
| Certification: | CE/ RoHS/ TUV/ UL/ GB/ KC |
| Model Number: | LEDLINE ASTON 1615 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1PC |
| Price: | Negotiable |
| Packaging Details: | On ESD Bag,on shipping box, without LOGO. Standard 5Mtr/reel, different lengths can be offered if needed. |
| Delivery Time: | 3-4 weeks after payment |
| Payment Terms: | D/P T/T Paypal |
| Supply Ability: | IP20 LED strip 50000m per day |
|
Detail Information |
|||
| Model: | LEDLINE ASTON 1615 WHT | Voltage: | DC24V |
|---|---|---|---|
| Neon Size: | 16mm*15mm | IP Rating: | IP67 |
| Certificate: | CE RoHS TUV UL Compliant | Bending Direction: | Top Bending (vertical Bending) |
| CCT: | 2700K-5300K | CRI: | Ra93 |
| High Light: | Matt Black Surface Silicone Neon Strip,RoHS Silicone Neon Strip,DC24V Neon Silicone Strip |
||
Product Description

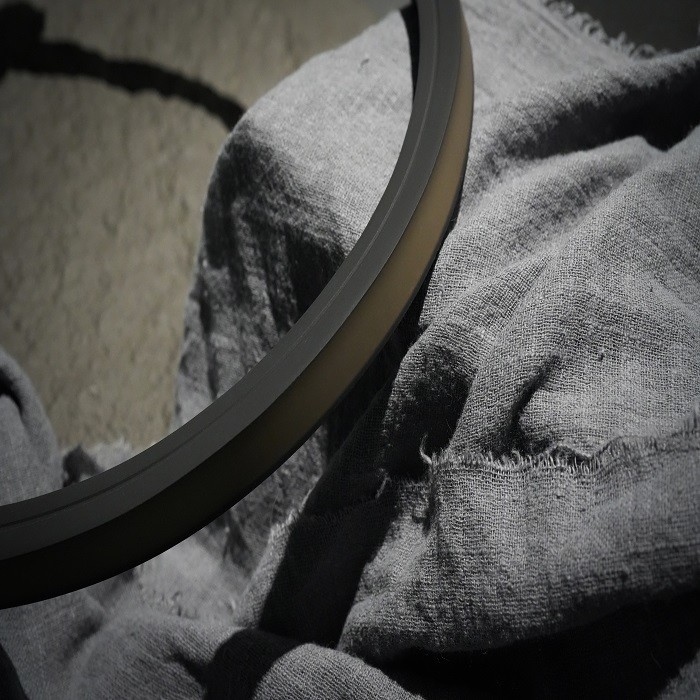

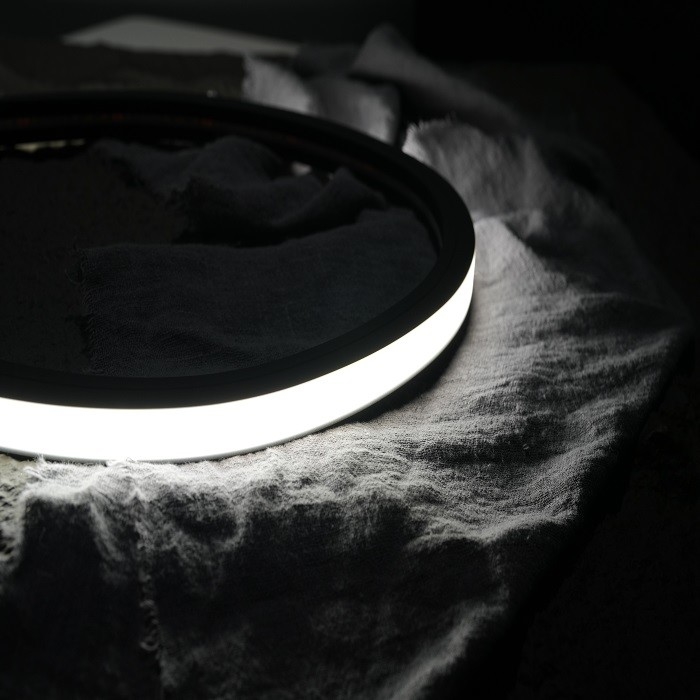

Outdoor Silicone Neon Strip Matt Black Surface Top Bending IP67 DC24V Waterproof
Quick Detail:
· Voltage: DC24V
· Neon Size: 16mm*15mm
· Bending Direction: Top bending (vertical bending)
· Cutting Interval: 50mm
· Max Wattage: 10W/m
· CRI: Ra93
· CCT: 2700K-5300K
· Max Run Lenghth: 5w/20m 10w/10m 15w/6.6m
· IP Rating: IP67

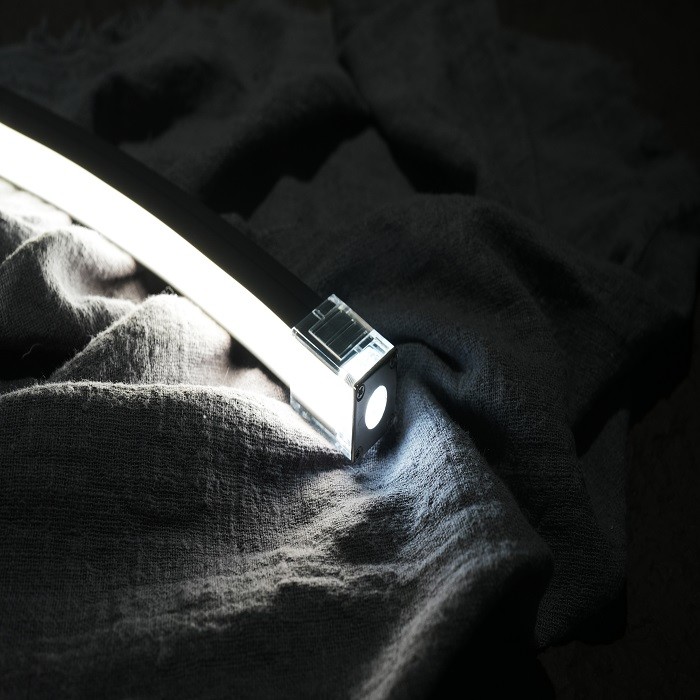

· Endcap Option: Injected endcap, Silicone endcap
· CE, RoHS, TUV, UL compliant
· 5 Year Warranty
Specifications:
| Model | LEDLINE ASTON 1615 WHT -40 |
| SMD Type | 2835 |
| LEDs/m | 120LEDs/m |
| LED Power | 5/10/15W/m |
| LED Color | 2700K-5300K |
| Input Voltage | DC24V |
| Ra | >93 |
| Neon Dimension | 16mm*15mm |
| Unit cut | 50mm |
| IP Grade | IP67 |
| Storage Temperature | -25℃ /-13℉min, 60℃ /140℉max |
| Life Span | >54000H |
| Certification | CE, RoHS, TUV,REACH, UL |
| Warranty | 5 years |
Notices:
1. Please light it up for a quick check before installation.
2. Bending diameter of LEDLINE ASTON 1615 WHT is 240mm, do not bend to side direction, or bend too sharp or twist. If bend it wrongly, PCB inside will be damaged and the lighting fixture will not turn on.
3. During installation, please make sure there are at least two workers to cooperate together and strictly follow the instruction manuals.
4. Warranty: All LED light are warranted to be free from defects in product itself for 5 years from the date of purchase. This warranty does not cover failures due to abuse, misuse, improper handling, act of nature, negligence, normal wear, accidental damage, modifications or repairs made by the purchaser or incorrect voltage conditions.
Applications:
LEDLINE ASTON 1615 WHT is suitable for both indoor and outdoor applications such as facade lighting, contour lighting, landscape lighting, retail shops, gallery, show-booth and exhibition room. Ideal for architectural lighting, coves, object integration.Desired light effect in bar counter, restaurant, hotel and task lighting applications.
FAQ:
Commercial CE RoHS Reach UL Certificate Outdoor Underwater IP68 Waterproof
Q1. Where is your factory located?
A: Our factory is located in Baoan District,Shenzhen, Guangdong Province, China.
Q2. What are your main products?
A: Our company dedicated in LED Strips for more than 10 years. Our main products are led strip, cob(CHIP ON BOARD) strip, neon flex and rigid bar.
Q3. What are your payment terms?
A: 100% Payment before production or 30% deposit+ 70% before shippment(The latter requires a single payment of more than $10,000)
Q4. OEM OR ODM accepted?
A: Yes,we can do OEM & ODM,logo on the light or package both are available.
