Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | JRLite OEM/ODM |
| Certification: | UL / TUV / CE / ROHS / REACH |
| Model Number: | COVEFLEX WHALE PRO |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1PC |
| Price: | Negotiable |
| Packaging Details: | On ESD Bag,on shipping box, without LOGO. Standard 5Mtr/reel, different lengths can be offered if needed. |
| Delivery Time: | 3-4 weeks after payment |
| Payment Terms: | D/P T/T Paypal |
| Supply Ability: | IP20 LED strip 50000m per day |
|
Detail Information |
|||
| Model: | COVEFLEX WHALE PRO | Voltage: | DC24V(23.5Vmin, 24.5Vmax) |
|---|---|---|---|
| LED PIN Temperature: | Max.65℃ | SMD Type: | 2835 |
| Power/m: | 24W/M | Waterproof Rate: | IP65 |
| Warranty: | 3 Years | LED Color: | Warm White |
| Max. Run Length: | 5M | Color Temperature: | 2700K/3000K/4000K/6500K |
| High Light: | Wall Washer Rigid LED Strip,IP65 Rigid LED Strip,Free Bending 2835 LED Strip |
||
Product Description

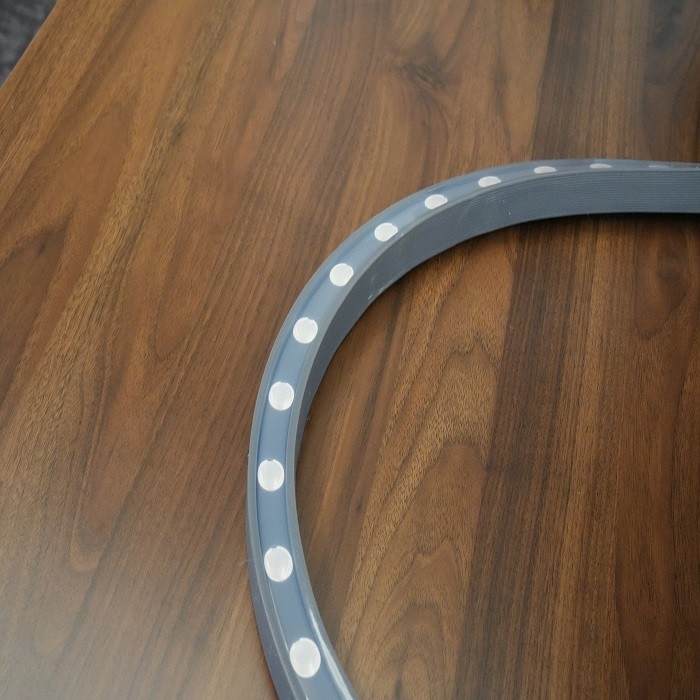

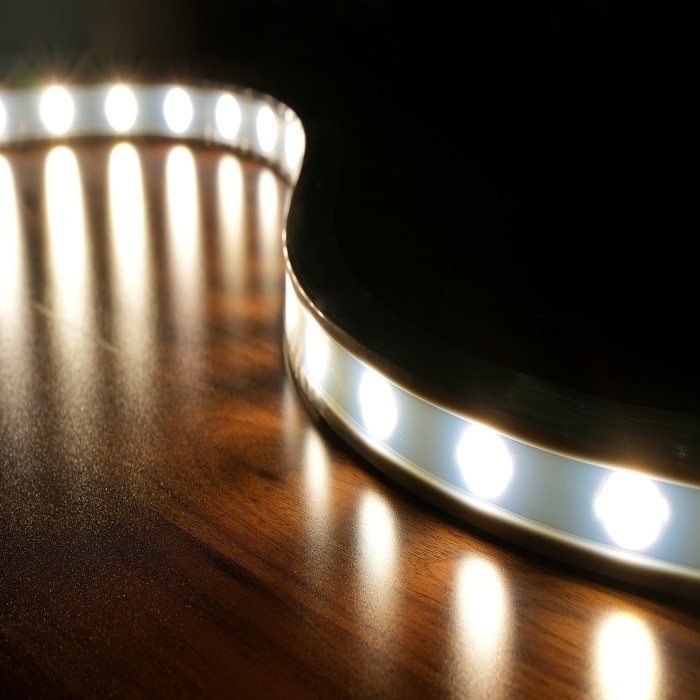

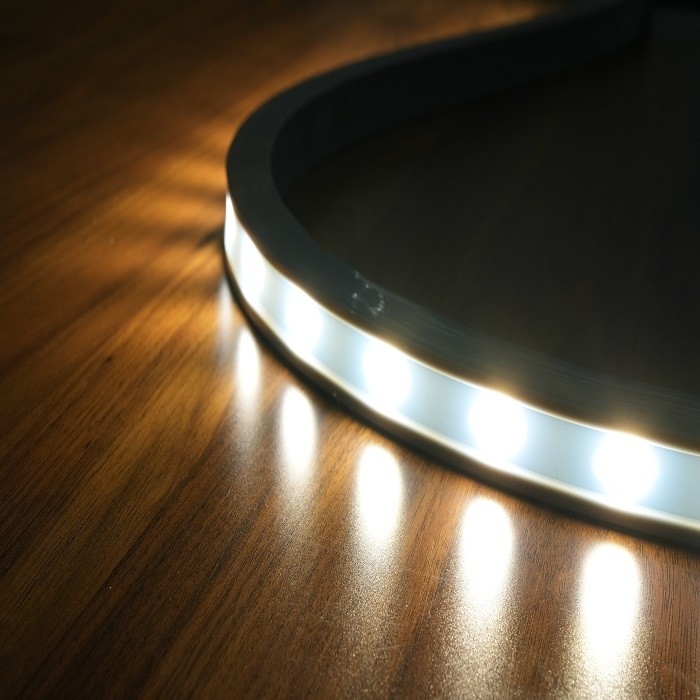

2835 IP65 Silicone Wall Washer Rigid LED Strip WHT Free Bending Structure
Quick Detail:
· UV-resistance(no yellowish)
· Lumileds LED
· Various beam angles(15° ,30°, 50° ,18*20° ,20*35° ,20*55° ).
· Using optical grade
· Maximum run length 5M
· IP65 rating
· CE, RoHS, Reach, UL compliant
· Life Span >30000H
· Hidden end cap design, easy to install.
Specifications:
| Tech Date | |
| Model |
COVEFLEX WHALE PRO
|
| LED Type | Lumileds 2835 |
| Beam Angle |
15° ,30°,50° ,18*20° ,20*35°,20*55° |
| LED PIN Temperature | Max.65℃ |
| Storage Temperature | -25℃ ～ +40℃ |
| Life span | >30000hrs |
| Certification | CE, RoHS, Reach, UL |
| IP Grade | IP65 |
| Warranty | 3 Years |
| Max. Run Length | 5M |
| CRI | Ra80 |
| LED Color | white |
| Voltage | DC24V(23.5Vmin, 24.5Vmax) |
|
Lumen efficiency
|
113lm/w(4000K, 30° )
|
| Power(W/M) |
24W/M
|
|
LEDs/m
|
24LEDs/m
|
Notices:
1. Please light it up for a quick check before installation.
2. Bending diameter of WHALE PRO WHT, do not bend to top direction, or bend too sharp or twist. If bend it wrongly, PCB inside will be damaged and the lighting fixture will not turn on.
3. During installation, please make sure there are at least two workers to cooperate together and strictly follow the instruction manuals.
4. Warranty: All LED light are warranted to be free from defects in product itself for 5 years from the date of purchase. This warranty does not cover failures due to abuse, misuse, improper handling, act of nature, negligence, normal wear, accidental damage, modifications or repairs made by the purchaser or incorrect voltage conditions.
Applications:
FAQ:
Commercial CE RoHS Reach UL Certificate Indoor IP20
Q1. Are you a manufacturer?
A: Yes, we have our own factory and professional engineers to meet your any requirements. Welcome you to visit our factory.
Q2. OEM OR ODM accepted?
A: Yes,we can do OEM & ODM,logo on the light or package both are available.
Q3. What are your payment terms?
A: 100% Payment before production or 30% deposit+ 70% before shippment(The latter requires a single payment of more than $10,000)
Q4. Why use Silicone material?
A: 1.UV resistant, will not yellow in time.
2.Highly flexible, stable and
durable; soft to bend, fast recovery after bending.
3.For the installation environment, it can endure in -25℃ to 60℃ temperature.
4.Non sticky, easy-to-clean, no smell and no chemical reaction with detergent.
5.Premium look and feel.
