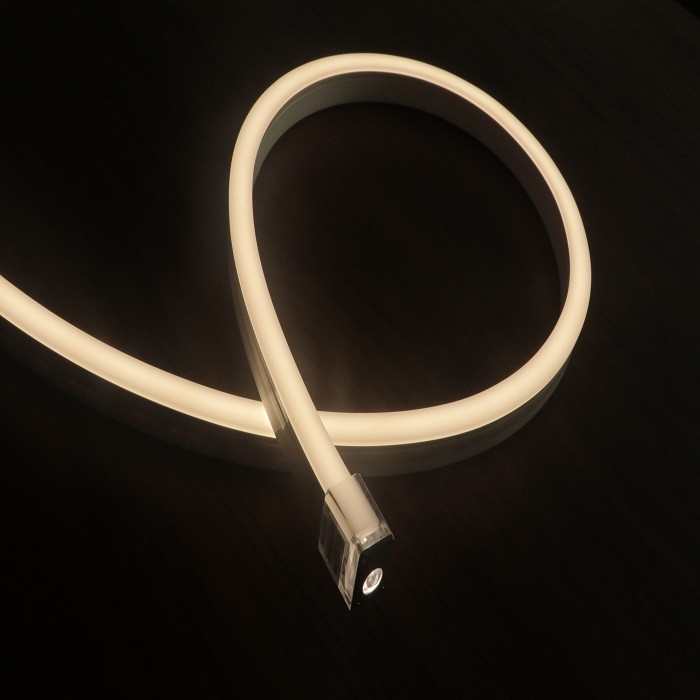

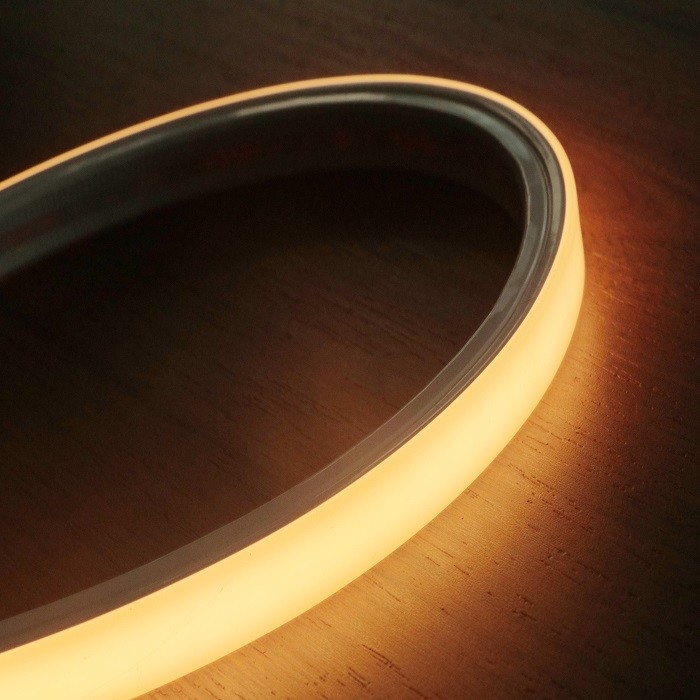

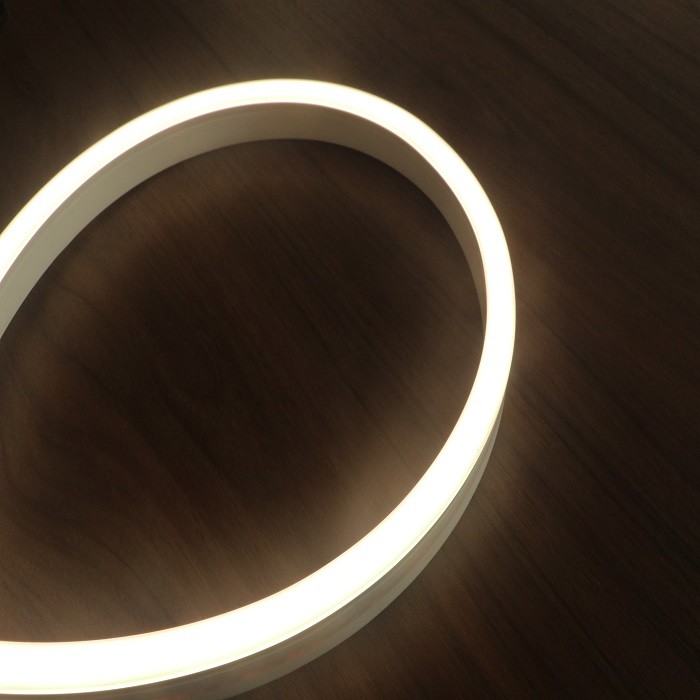

DC24V IP67 Side Bending 2700K-5300K Silicone Neon Strip Decorate Lighting
DC24V IP67 Side Bending 2700K-5300K Silicone Neon Strip Decorate Lighting
DC24V IP67 Side Bending 2700K-5300K Silicone Neon Strip Decorate Lighting DC24V IP67 Side Bending 2700K-5300K Silicone Neon Strip Decorate Lighting DC24V IP67 Side Bending 2700K-5300K Silicone Neon Strip Decorate Lighting DC24V IP67 Side Bending 2700K-5300K Silicone Neon Strip Decorate Lighting

DC24V IP67 Side Bending 2700K-5300K Silicone Neon Strip Decorate Lighting

Product Details:
Place of Origin: China
Brand Name: JRLite OEM/ODM
Certification: UL/TUV/CE/ROHS/REACH
Model Number: LEDLINE ASTON 1220
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: On ESD Bag,on shipping box, without LOGO. Standard 5Mtr/reel, different lengths can be offered if needed.
Delivery Time: 3-4 weeks after payment
Payment Terms: D/P T/T Paypal
Supply Ability: IP20 LED strip 50000m per day
Contact Now

Detail Information
CCT: 2700K-5300K CRI: Ra90
Neon Size: 12mm*20mm/ 0.47" X 0.79" (W X H) Bending Direction: Side Bending (horizontal Bending)
IP Rating: IP67 5 YearsPower: 5W/M,10W/M,15W/M
Voltage: DC24V Application: Retail Shops. Restaurant, Hotel, Shopping Mall.

Product Description

DC24V IP67 Side Bending 2700K-6500K Silicone Neon Strip Decorate Lighting


Description Detail:

-LEDLINE ASTON 1220 WHT, DC24V. Cross section size 12mmx 20mm/ 0.47" x 0.79" (W x H),
which is horizontal bending with radius of 120mm / 4.72".
-IP67 protected, UV resistant, chemical resistant and DIY
connectors for indoor & outdoor solutions. Very easy to cut & reconnect on site.
-2-Step MacAdam bin and dotfree lighting guarantee the most excellent performance over the rated lifetime.


Specifications:
Model ASTON 1220 WHT
SMD Type Lumileds 2835/Sanan 2835
LEDs/m 120LEDs/m
LED Power 5W/M,10W/M,15W/M
Cable Entry Front/Side/Bottom Cable Entry
Input Voltage DC24V
Ra >90
Neon Dimension 12mm*20mm(W*L)
Unit cut 50mm
IP Grade IP67
Storage Temperature -25℃ /-13℉min, 60℃ /140℉max
Life Span >54000H
Certification CE, RoHS, TUV,REACH, UL
Warranty 5 years
Efficiency(LM/W) 492LM/M(3000K)


Application:

Facade lighting, contour lighting and landscapelighting.
Solutions for retail shops.
Signage and illuminated advertising.
Ideal for architectural lighting, coves, object integration.



Download datasheet:LEDLINE ASTON 1220.pdf


Notices:

- The max. run length of using Integrated Endcap and DIY Endcap is different.
Please refer to the above table.
- When ambient temperature reaches 55℃ , the power is suggested to be 5W/M.
- Max. run length refers to single side feed in serial connection.
- The given data are typical values due to the tolerances of the production process
 and the electrical components, values for light output and electrical power can vary up to 10%.
- The given color temperature is the temperature of finished product.
DC24V IP67 Side Bending 2700K-5300K Silicone Neon Strip Decorate Lighting 0

FAQ:

Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. Why use Silicone material?
A: 1.UV resistant, will not yellow in time.
2.Highly flexible, stable and
durable; soft to bend, fast recovery after bending.
3. For the installation environment, it can endure in -25℃ to 60℃ temperature.
4. Non sticky, easy-to-clean, no smell and no chemical reaction with detergent.
5. Premium look and feel.

Q3. Is it possible to visit the factory?
A: Of course, we welcome customers to experience our production equipment and standard production environment

Q4. What are your main products?
A: Our company dedicated in LED Strips for more than 10 years. Our main products are led strip, cob(CHIP ON BOARD) strip, neon flex and rigid bar.

Q5. How to proceed an order for led light?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
